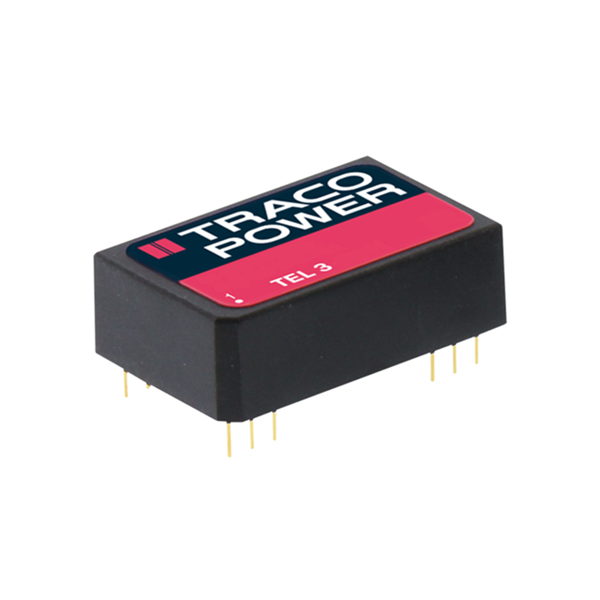

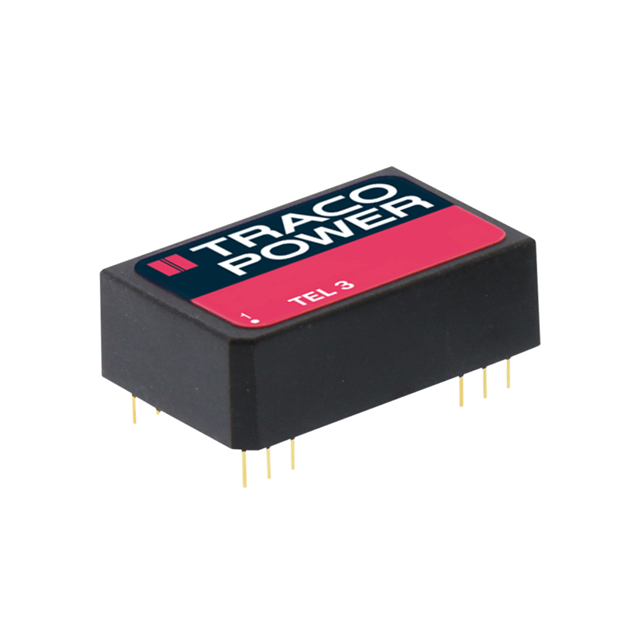

TEL 3-1212

Name: TEL 3-1212
Brand: Traco Power
SKU: 1335598
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEL 3-1212
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 3W / Isolated Module DC DC Converter 1 Output 12V 250mA 9V - 18V Input
Datasheet	TEL 3-1212 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	12V
Current - Output (Max)	250mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	80%
Mounting	Through Hole
Case / Package	24-DIP Module, 13 Leads
Size / Dimension	1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm)
Base Product Number	TEL 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2107
Standard Package	10
Win Source Part Number	1335598-TEL 3-1212
Ultra Librarian 3D Model	Ultra Librarian TEL 3-1212 CAD Model

Alternative Products

Description

The TEL 3-1212 is an isolated module DC-DC converter from Traco Power.

Mounting Type: Through-hole
Package: 24-DIP module, 13 leads
Power: 3 W
Voltage Isolation: 1.5 kV
Outputs: Single
Voltage: 12 V
Maximum Output Current: 250 mA
Input Voltage Range: 9V to 18V
Efficiency: 80%
Applications: ITE (Commercial)
Features: SCP (Short Circuit Protection)
Operating Temperature: -40°C to 85°C (with derating)
Compliance: RoHS compliant
REACH: Unaffected
Status: Not for new designs
