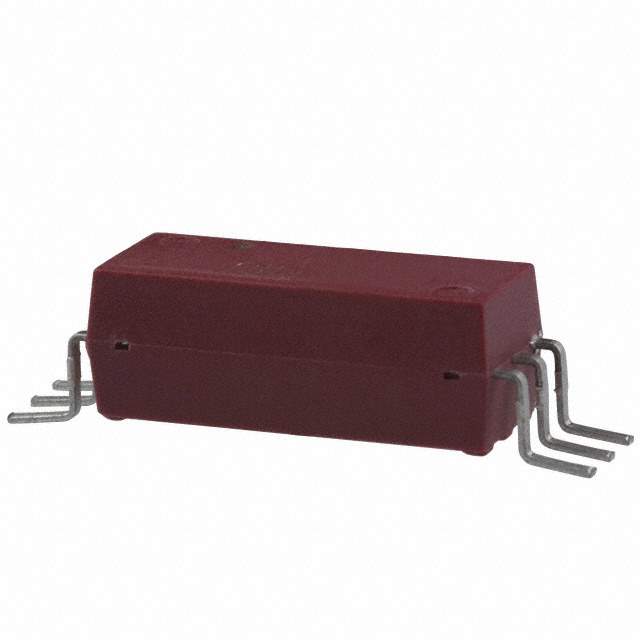

9402-05-00 Real Image
Same model may have multiple batches, images only for reference.

9402-05-00

Part No 9402-05-00
Manufacturer Coto Technology
Catalog Signal Relays, Up to 2 Amps
Description RELAY RF SPST 500MA 5V
Datasheet
9402-05-00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Coto Technology
Series 9400
Packaging Tube
Relay Type RF
Coil Type Non Latching
Coil Current 25mA
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500mA
Switching Voltage 200VAC, 200VDC - Max
Turn On Voltage (Maximum) 3.75 VDC
Turn Off Voltage (Minimum) 0.4 VDC
Operate Time 0.4ms
Release Time 0.2ms
Mounting SMD
Termination Style Gull Wing
Coil Resistance 200 Ohms
Operating Temperature Range -20°C ~ 85°C
Win Source Part Number 766505-9402-05-00
Popularity Medium
Supply and Demand Status Limited
Family Name 9402-05-00
Introduction Date October 20, 2006
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 9402-05-00 CAD Model

Description

The Coto Technology 9400 series relay is a high-quality component manufactured by Coto Technology.

  • Series: 9402-05-00
  • Termination: Gull Wing
  • Contact Form: SPST-NO (1 Form A)
  • Coil Resistance: 200 Ohms
  • Coil Current: 25mA
  • Operate Time: 0.4ms
  • Release Time: 0.2ms
  • Switching Voltage: 200VAC, 200VDC - Max
  • Contact Rating (Current): 500mA
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
