Same model may have multiple batches, images only for reference.

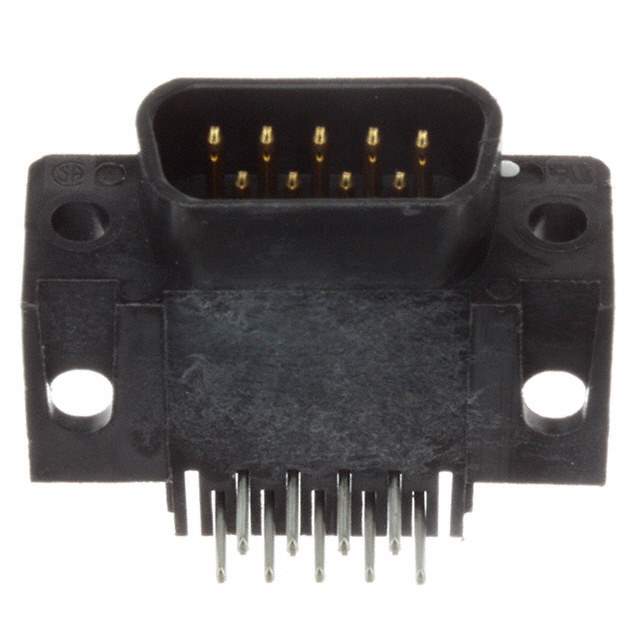

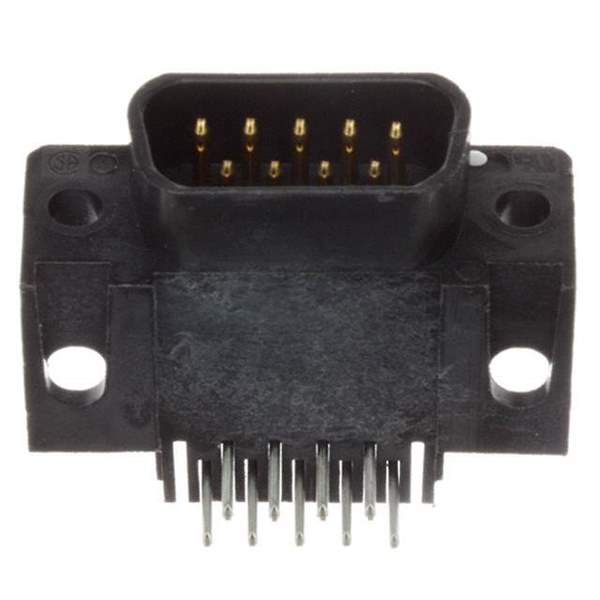

5747467-1 Real Image
Same model may have multiple batches, images only for reference.

5747467-1

Part No 5747467-1
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 9POS R/A SLDR / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.590" (14.99mm)
Voltage Rating 125V
Color Black
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747467
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 57474671,A33994,2266-5747467-1
Standard Package 140
Win Source Part Number 1212358-5747467-1
Ultra Librarian 3D Model Ultra Librarian 5747467-1 CAD Model

Description

The TE Connectivity AMP Connectors 5747467-1 is a male pin D-sub connector with 9 positions and a voltage rating of 125V.

  • Positions: 9
  • Voltage Rating: 125V
  • Termination: Solder
  • Contact Finish: Gold
  • Flammability Rating: UL94 V-0
  • Packaging: Tray
  • Standard Package: 140
  • HTSUS Code: 8536.69.4040
  • Status: Obsolete
