167292-1 TE Connectivity

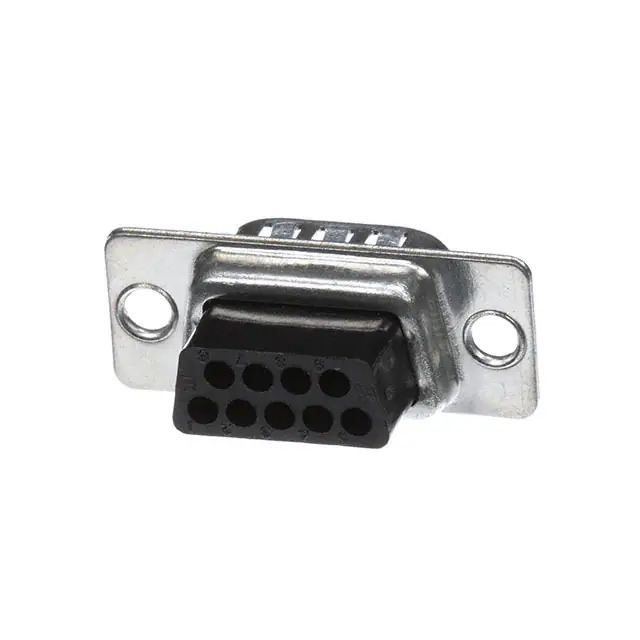

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Product Status Active
Connector Style D-Sub
Connector Type Plug for Male Contacts
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded)
Features -
Shell Material, Finish Steel, Tin Plated
Shell Finish Thickness -
Ingress Protection -
Mating Cycles -
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 167292
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365163-167292-1
Ultra Librarian 3D Model Ultra Librarian 167292-1 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HDP-20 is a D-Sub, D-Shaped Connector Housing designed for use with male contacts.

  • Connector Type: Plug
  • Number of Positions: 9
  • Number of Rows: 2
  • Housing Material: Black Polyamide (PA) Nylon, Glass Filled
  • Mounting Style: Free Hanging (In-Line)
  • Shell Size: 1 (DE, E)
  • Shell Material Finish: Steel, Tin Plated
  • Temperature Range: -55°C to 105°C
  • Contacts Included: No
