1658671-1 TE Connectivity

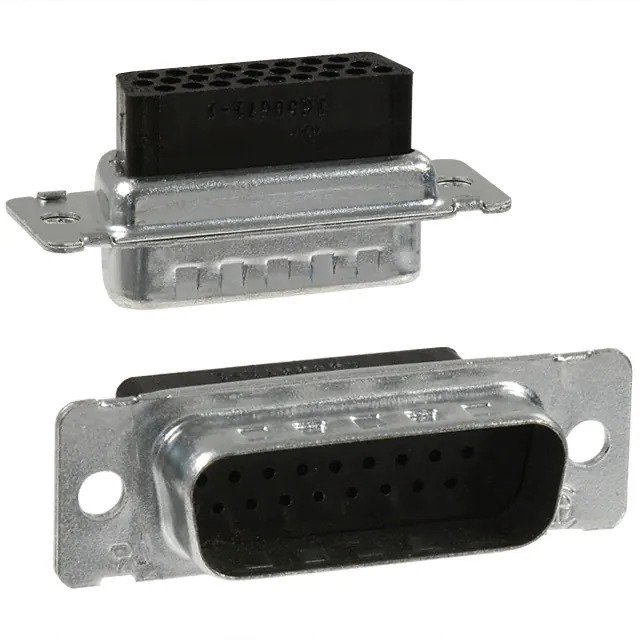

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-22
Package Bulk
Product Status Active
Connector Style D-Sub, High Density
Connector Type Plug for Male Contacts
Number of Positions 26
Number of Rows 3
Shell Size, Connector Layout 2 (DA, A) High Density
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded)
Features Grounding Indents
Shell Material, Finish Steel, Tin Plated
Shell Finish Thickness 200µin (5.08µm)
Ingress Protection -
Mating Cycles -
Dielectric Material Polyamide (PA), Nylon, Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 1658671
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1365173-1658671-1
Ultra Librarian 3D Model Ultra Librarian 1658671-1 CAD Model

Description

The AMPLIMITE HDP-22 series D-sub connector housings are an excellent choice for your electronic projects from TE Connectivity AMP Connectors.

  • Connector Type: Plug
  • Gender: Male
  • Contact Type: Signal
  • Number of Positions: 26
  • Number of Rows: 3
  • Features: Grounding Indents
  • Package Type: Bulk
  • Product Status: Active
  • REACH Compliant: Unaffected
  • Color: Black
