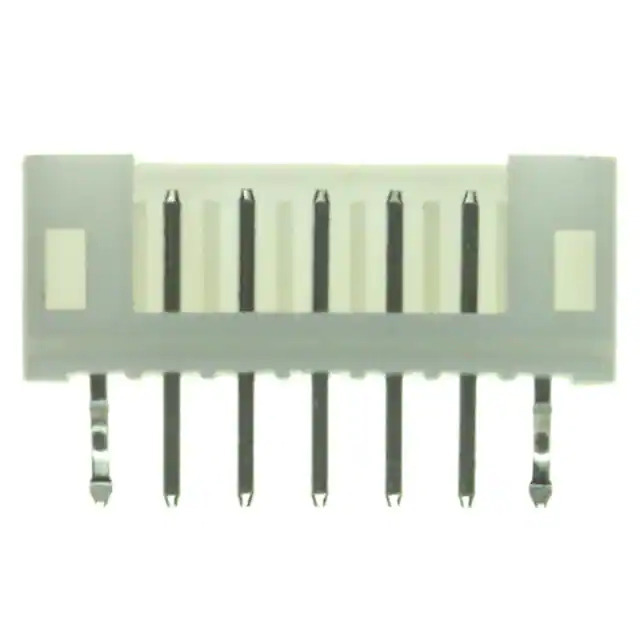

440054-7 TE Connectivity
Same model may have multiple batches, images only for reference.

440054-7

Part No 440054-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 7POS 2MM / Connector Header Through Hole 7 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series High Performance Interconnect (HPI)
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 7
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type -
Contact Length - Mating 0.132" (3.35mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.335" (8.51mm)
Insulation Height 0.238" (6.05mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features -
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights -
Contact Finish Thickness - Post 80.0µin (2.03µm)
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 440054
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1377465-440054-7
Ultra Librarian 3D Model Ultra Librarian 440054-7 CAD Model

Description

The TE Connectivity AMP Connectors 440054 is a high-performance interconnect header.

  • Manufacturer: TE Connectivity AMP Connectors
  • Product Name: 440054
  • Type: Male pin connector
  • Pitch: 0.079 inches (2.00mm)
  • Positions: 7
  • Shrouded: 4 walls
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Contact Finish: Tin
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA66) and nylon 6/6
  • Flammability Rating: UL94 V-0
  • Applications: Automotive, general purpose, industrial, and medical
  • Mounting Type: Through hole
  • Terminations: Press-fit and solder
  • Contact Length: 0.335 inches (8.51mm)
  • Insulation Height: 0.238 inches (6.05mm)
