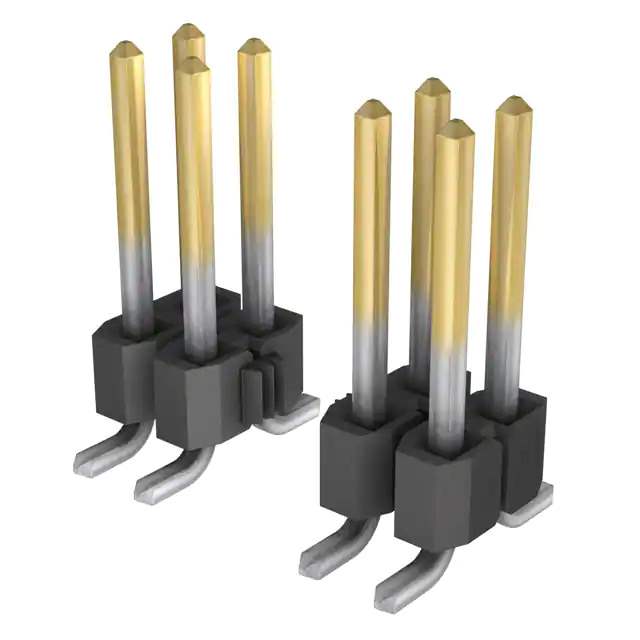

TSM-105-02-SM-DV-P-TR

Name: TSM-105-02-SM-DV-P-TR
Brand: Samtec Inc.
SKU: 937720
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSM-105-02-SM-DV-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 2.54MM / Connector Header Surface Mount 10 position 0.100" (2.54mm)
Datasheet	TSM-105-02-SM-DV-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSM
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.320" (8.13mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSM-105
Standard Package	200 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	937720-TSM-105-02-SM-DV-P-TR
Ultra Librarian 3D Model	Ultra Librarian TSM-105-02-SM-DV-P-TR CAD Model

Alternative Products

Description

The 937720-TSM-105-02-SM-DV-P-TR is a male pin header connector from the TSM series.

Positions: 10
Feature: Pick and Place
Mounting Type: Surface Mount
Termination: Solder
Contact Material: Phosphor Bronze
Contact Finish: Gold
Pitch: 0.100" (2.54mm)
Contact Length: 0.320" (8.13mm)
Operating Temperature: -55°C to 125°C
Package: Tape & Reel
Product Status: Active (Samtec Inc.)
