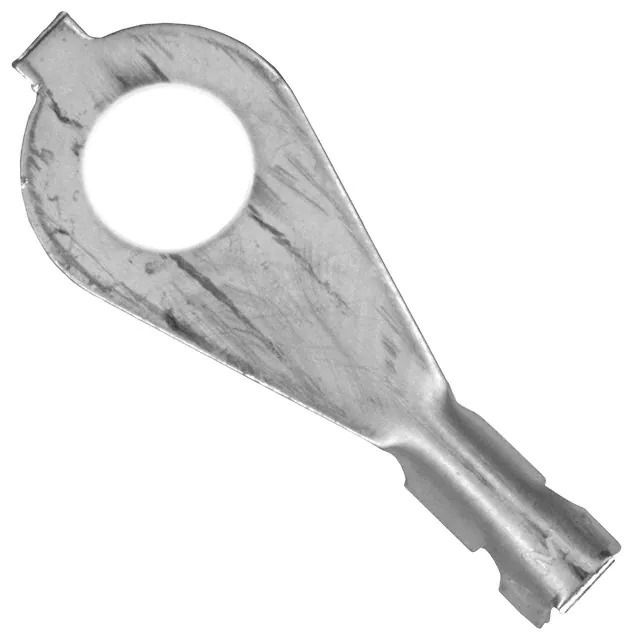

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.020" (0.51mm)
Width - Outer Edges 0.312" (7.92mm)
Length - Overall 0.770" (19.56mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 20-24 AWG
Insulation Non-Insulated
Features Serrated Termination
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.048" ~ 0.078" (1.22mm ~ 1.98mm)
Material - Insulation -
Base Product Number 42508
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364899-42508-2
Ultra Librarian 3D Model Ultra Librarian 42508-2 CAD Model

Description

The TE Connectivity AMP Connectors 42508 is a ring connector designed for use in connectors and interconnects.

  • Mounting Type: Free Hanging (In-Line)
  • Wire Gauge: 20-24 AWG
  • Contact Material: Brass
  • Terminal Type: Circular
  • Overall Length: 0.770" (19.56mm)
  • Insulation Diameter: 0.048" to 0.078" (1.22mm to 1.98mm)
  • Insulation: Non-Insulated
  • Termination: Crimp
  • Contact Finish: Tin
  • Packaging: Tape & Reel (TR)
  • Product Status: Active
