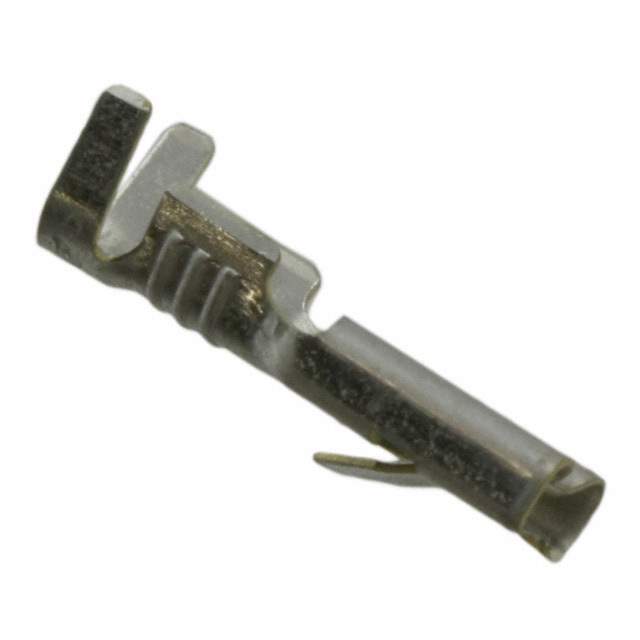

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.248" (6.30mm)
Length - Overall 0.551" (14.00mm)
Termination Crimp
Wire Gauge 15.5-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.079" ~ 0.118" (2.00mm ~ 3.00mm)
Base Product Number 160655
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Names A100462CT,1606552,160655-2-ND,2266-160655-2,A100462TR
Standard Package 10,000
Win Source Part Number 1218307-160655-2
Ultra Librarian 3D Model Ultra Librarian 160655-2 CAD Model

Description

The TE Connectivity AMP Connectors Fastin-Faston 160655-2 is a female terminal used in connectors and interconnects.

  • Wire Gauge: 15.5-20 AWG
  • Termination: crimp
  • Tab Width: 0.110" (2.79mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.248" (6.30mm)
  • Insulation Diameter: 0.079" ~ 0.118" (2.00mm ~ 3.00mm)
  • Mounting: free hanging (in-line)
  • Standard Package: 10,000 pcs
