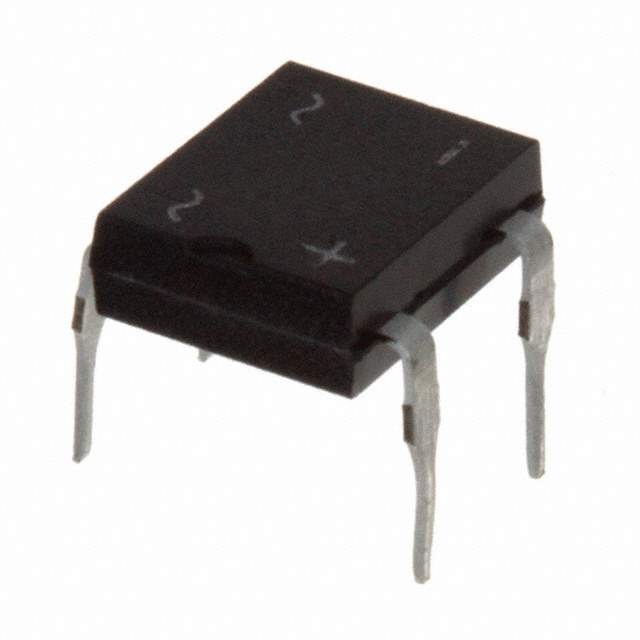

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr GeneSiC Semiconductor
Package Bulk
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 10 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-EDIP (0.321", 8.15mm)
Supplier Device Package DB
Base Product Number DB106
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 584101-DB106G
Ultra Librarian 3D Model Ultra Librarian DB106G CAD Model

Description

The DB106G is a single-phase bridge rectifier diode with a voltage rating of 800V and an average rectified current of 1A.

  • Voltage Rating: 800V
  • Average Rectified Current: 1A
  • Application: standard
  • Mounting: through-hole
  • Forward Voltage Drop: 1.1V @ 1A
  • Reverse Leakage Current: 10µA @ 800V
  • Operating Temperature Range: -55°C to 150°C
  • Manufacturer: GeneSiC Semiconductor
  • Status: active
  • Application: AC to DC voltage rectification
