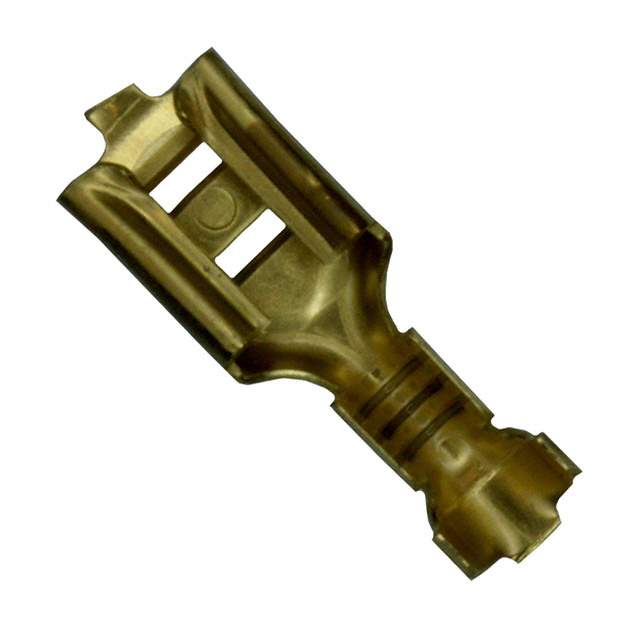

60196-1 Real Image
Same model may have multiple batches, images only for reference.

60196-1

Part No 60196-1
Manufacturer TE Connectivity
Catalog Terminals
Description Quick Disconnect Terminal 18-22AWG RCP 14.98mm 5.58mm Automotive Strip
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Brass
Contact Material Brass
Depth 5.58 mm
ELV Compliant
Gender Female
Insulated Wire Support Yes
Insulation Non-Insulated
Insulation Diameter 3.302 mm
Lead Free Lead Free
Length 14.986 mm
Material Brass
Mating Tab Width 4.75 mm
Orientation Straight
Packaging Cut Tape
Plating Unplated
Radiation Hardening No
RoHS Compliant
Sealable No
Tab Thickness 812.8 µm
Tab Width 4.7498 mm
Termination Receptacle
Wire/Cable Diameter 3.302 mm
Wire/Cable Type Discrete
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 20 AWG
Win Source Part Number 1214299-60196-1
Categories Terminals
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 60196-1 CAD Model

Description

This electronic component is manufactured by TE Connectivity and has a Win Source Part Number of 1214299-60196-1.

  • Packaging: Cut Tape
  • Termination: Receptacle
  • Contact Material: Brass
  • Gender: Female
  • Length: 14.986 mm
  • Orientation: Straight
  • Body Material: Brass
  • Insulation: Non-Insulated
  • Tab Width: 4.7498 mm
  • Tab Thickness: 812.8 µm
  • Insulation Diameter: 3.302 mm
  • Material and Plating: Brass with Unplated Plating
  • Category: Terminals
  • Market Popularity: Medium
  • Fake Product Risk: 52% in the Open Market
  • Supply and Demand Status: Limited
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Radiation Hardened: No
  • Wire/Cable Type: Discrete Wire/Cable (Diameter 3.302 mm)
  • ELV Compliant: Yes
  • Wire Gauge: 16 AWG to 20 AWG
  • Sealable: No
  • Insulated Wire Support: Yes
  • Mating Tab Width: 4.75 mm
