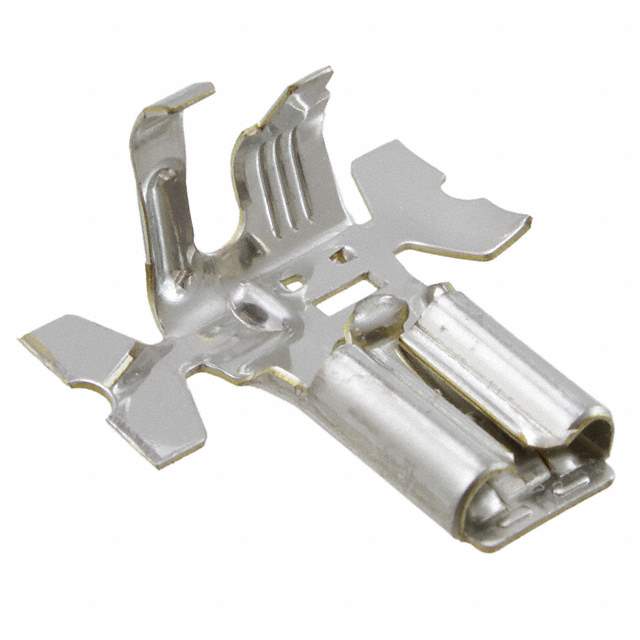

Same model may have multiple batches, images only for reference.

175057-1

Name: 175057-1
Brand: TE Connectivity
SKU: 1333580
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	175057-1
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN QC RCPT 12-18AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 12-18 AWG Crimp Connector Non-Insulated
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer	TE Connectivity AMP Connectors
Packaging	Reel - TR
Terminal Type	Angled - 90°, Flag
Gender	Female
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	0.307" (7.80mm)
Termination	Crimp
Wire Gauge	12-18 AWG
Insulation	Non-Insulated
Mounting	Free Hanging (In-Line), Right Angle
Contact Material	Brass
Contact Finish	Tin
Insulation Diameter	0.110" ~ 0.161" (2.79mm ~ 4.09mm)
Base Product Number	175057
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Other Part Number	1750571,A107104TR,A107104CT,175057-1-ND,-175057-1-CSI,-175057-1-SI
Standard Package	3,000
Win Source Part Number	1333580-175057-1
Ultra Librarian 3D Model	Ultra Librarian 175057-1 CAD Model

Description

The TE Connectivity AMP Connectors 1333580-175057-1 is a female quick disconnect connector with a crimp termination and a 12-18 AWG wire gauge.

Contact Finish: Tin
Contact Material: Brass
Terminal Type: Angled - 90°, Flag
Insulation: Non-Insulated
Tab Width: 0.250" (6.35mm)
Tab Thickness: 0.032" (0.81mm)
Tab Length: 0.307" (7.80mm)
Insulation Diameter: 0.110" ~ 0.161" (2.79mm ~ 4.09mm)
Mounting: Free Hanging (In-Line), Right Angle
ROHS3 Compliant: Yes
ECCN: EAR99
