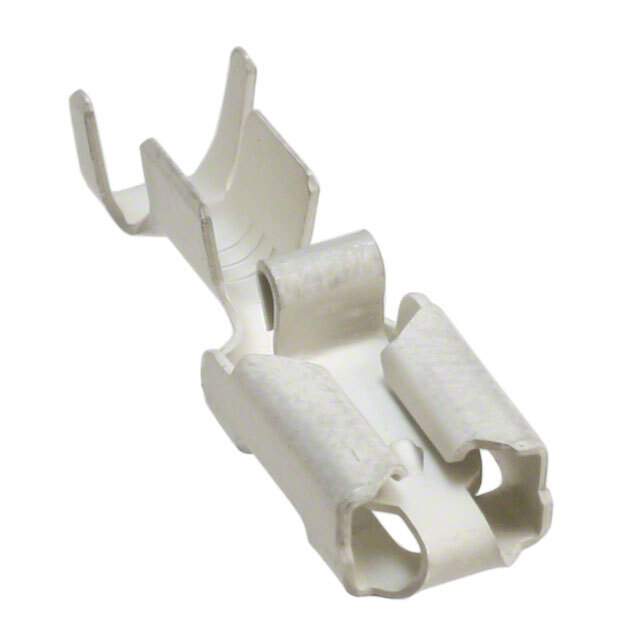

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.878" (22.30mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Phosphor Bronze
Contact Finish Tin
Insulation Diameter 0.091" ~ 0.130" (2.31mm ~ 3.30mm)
Base Product Number 160759
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 1607594,A99658TR,A99658CT
Standard Package 1,500
Win Source Part Number 1333597-160759-4
Ultra Librarian 3D Model Ultra Librarian 160759-4 CAD Model

Description

TE Connectivity AMP Connectors' 1333597-160759-4 is a quick connect, quick disconnect connector with a female gender and non-insulated insulation.

  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 16-20 AWG
  • Tab Width: 0.250 inches
  • Supply and Demand Status: Limited
