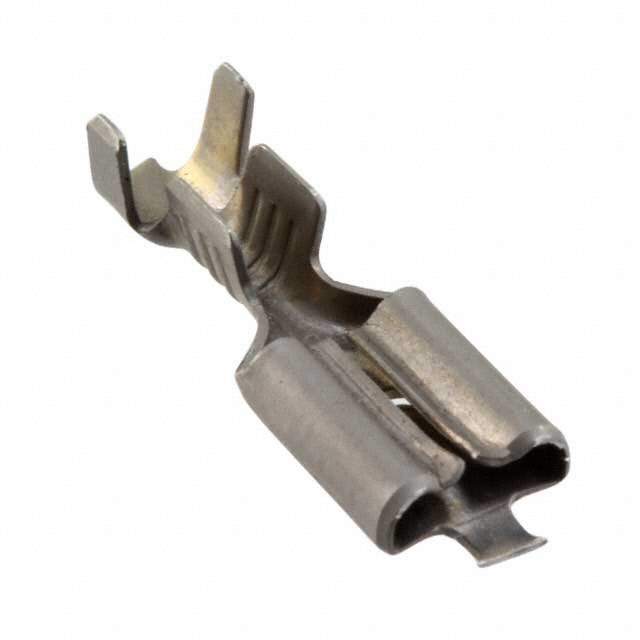

1742841-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Steel
Contact Finish Nickel
Insulation Diameter 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
Base Product Number 1742841
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -1742841-1-SI,17428411,A107926DKR-ND,A107926DKR,A107926DKRINACTIVE,2266-1742841-1TR,A107926CT,A107926TR
Standard Package 36,000
Win Source Part Number 1333662-1742841-1
Ultra Librarian 3D Model Ultra Librarian 1742841-1 CAD Model

Description

The TE Connectivity AMP Connectors 1333662-1742841-1 is a female quick disconnect connector with a crimp termination and a nickel contact finish.

  • Packaging: Reel - TR
  • Standard Package: 36,000
  • Contact Material: Steel
  • Mounting: Free Hanging (In-Line)
  • Terminal Type: Standard
  • Insulation Diameter: 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Tab Length: 0.250" (6.35mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8536.90.4000
  • RoHS Compliant: Yes
