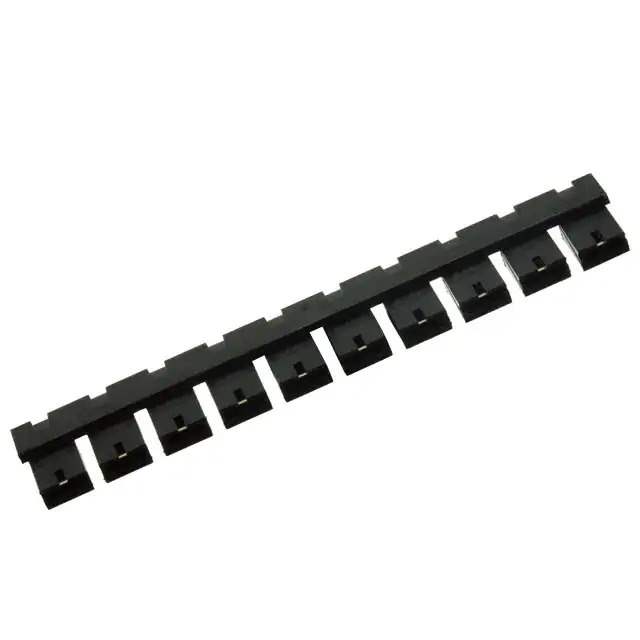

382811-6 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Shunts, Jumpers
Mfr TE Connectivity
Series AMPMODU
Package Bulk
Product Status Active
Type Open Top
Gender Female Sockets
Number of Positions or Pins (Grid) 2 (1 x 2)
Pitch 0.100" (2.54mm)
Height 0.250" (6.35mm)
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Color Black
Material Flammability Rating UL94 V-0
Housing Material Polyester, Glass Filled
Base Product Number 382811
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 855835-382811-6
Ultra Librarian 3D Model Ultra Librarian 382811-6 CAD Model

Description

The 855835-382811-6 is a shunt connector from TE Connectivity's AMPMODU series.

  • Manufacturer: TE Connectivity
  • Connector Type: Shunt Connector
  • Series: AMPMODU
  • Top Type: Open Top
  • Pitch: 0.100 inches
  • Color: Black
  • Contact Finish: Gold with a thickness of 15.0µin (0.38µm)
  • Housing Material: Polyester and glass-filled
  • Flammability Rating: UL94 V-0
  • Positions/Pins: 2
  • Arrangement: 1 x 2 grid
  • Height: 0.250 inches
  • Package: Bulk
  • Standard Package Quantity: 1,500 pcs
