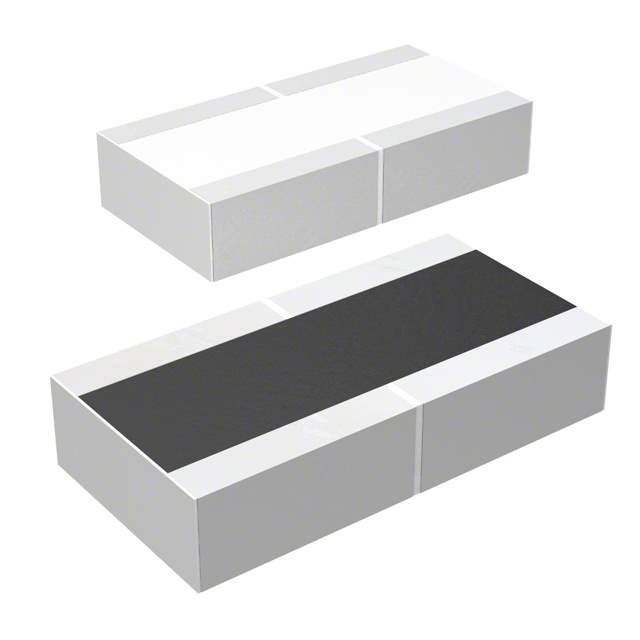

ERJ-B2AF620V Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 1206
Composition Thick Film
Depth 1.6 mm
Height 650 µm
Length 3.2 mm
Maximum Operating Temperature 155 °C
Min Operating Temperature -55 °C
Mount Surface Mount
Power Rating 750 mW
Resistance 62 Ω
RoHS Compliant
Temperature Coefficient 100 ppm/°C
Tolerance 1 %
Win Source Part Number 1057685-ERJ-B2AF620V
Categories Chip Resistor - Surface Mount
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ERJ-B2AF620V CAD Model

Description

The Panasonic ERJ-B2AF620V is a chip resistor with a resistance of 62Ω and a power rating of 750mW.

  • Resistance: 62Ω
  • Power Rating: 750mW
  • Tolerance: 1%
  • Temperature Coefficient: 100 ppm/°C
  • Maximum Operating Temperature: 155°C
  • Composition: Thick Film
  • Case/Package: 1206
  • RoHS Compliant: Yes
  • Mounting Type: Surface Mount Technology (SMT)
  • Category: Chip Resistor - Surface Mount
  • Alternatives: ERJP08F62R0V, ERJP08F56R0V, and ERJ-P08F68R0VERJB2AF620V
  • Supply and Demand Status: Shortage
  • Popularity: Low
