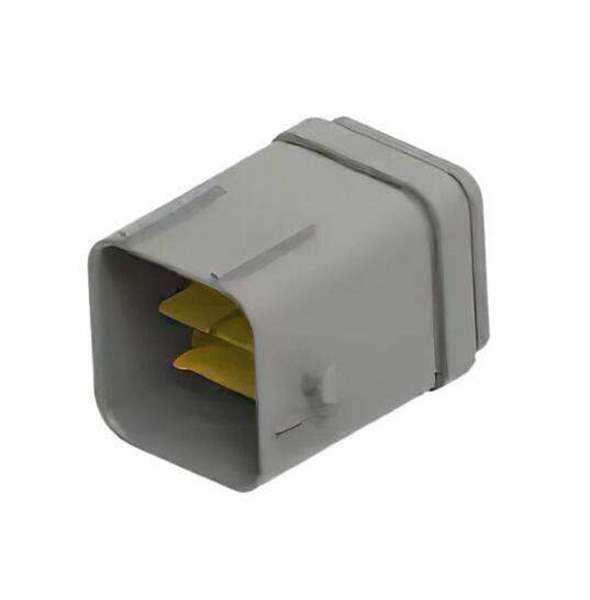

2366509-2TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

2366509-2

Part No 2366509-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT HSG 48POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Rectangular Connector Housings
Series NTS
Package Box
Product Status Active
Connector Type Receptacle
Contact Type Tab
Number of Positions 48
Number of Rows 6
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Win Source Part Number WS1207165-2366509-2
Ultra Librarian 3D Model Ultra Librarian 2366509-2 CAD Model

Description

48 Rectangular Connectors - Housings Receptacle Gray
