The STPS15M80CG-TR from STMicroelectronics is a state-of-the-art Schottky rectifier designed for high-performance power conversion applications. This component is part of STMicroelectronics' STPS series, renowned for its efficiency and reliability in a wide range of power management tasks.

Key Features

• High Junction Temperature: Capable of operating at a junction temperature of up to 175°C, the STPS15M80CG-TR ensures reliability under extreme conditions.
• Low Forward Voltage Drop: The low forward voltage drop (Vf) minimizes power loss and improves efficiency, making it ideal for energy-sensitive designs.
• High Average Forward Current: With an average forward current (IF(AV)) of 15 A, this component can handle significant power without performance degradation.
• High Surge Current Capability: It is equipped to manage high surge currents, providing robust protection against unexpected power spikes.
• Power Schottky Technology: Utilizing advanced Power Schottky technology, the STPS15M80CG-TR offers a superior trade-off between leakage current and forward voltage drop.

Applications

The versatility of the STPS15M80CG-TR allows it to be used in a multitude of applications, including:

• Switch Mode Power Supplies (SMPS)
• DC/DC converters
• Free-wheeling diodes in converters and motor control circuits
• Power factor correction (PFC) circuits
• Automotive applications

Package and Quality

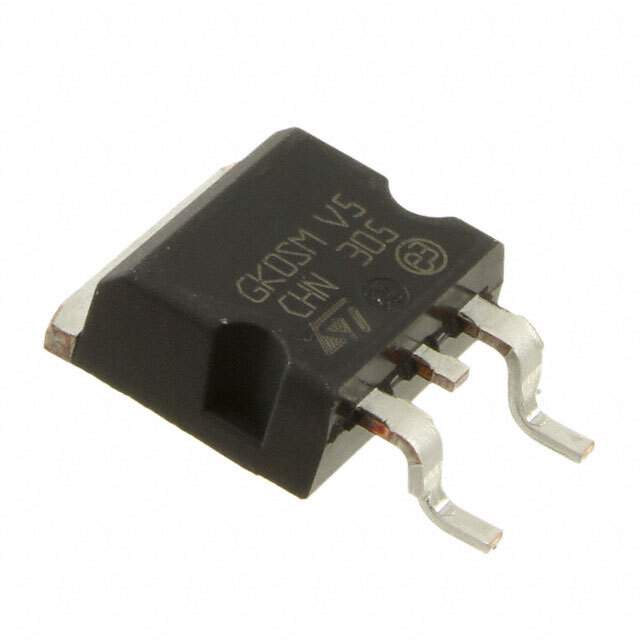

The STPS15M80CG-TR is provided in a D2PAK (TO-263) surface-mount package, which is designed for optimal thermal performance and space-saving on the PCB. The product is supplied in tape and reel packaging, making it suitable for automated assembly processes. It complies with the RoHS directive, ensuring that it meets the latest environmental standards for electronic components.

Conclusion

With its robust design, high efficiency, and versatile application range, the STPS15M80CG-TR Schottky rectifier from STMicroelectronics is an excellent choice for designers looking to optimize their power management systems. Its combination of high temperature operation, low power loss, and surge current capability make it a reliable and effective component in any power conversion solution.
