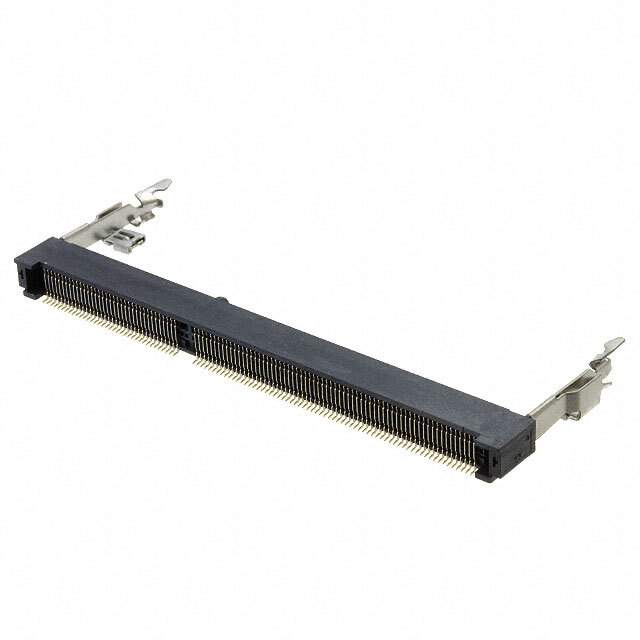

2013289-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors - Inline Module Sockets
Mfr TE Connectivity AMP Connectors
Package Tray
Connector Style SODIMM
Number of Positions 204
Memory Type DDR3 SDRAM
Mounting Type Surface Mount, 25° Angle
Features Board Guide, Latches
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number 2013289
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -2013289-1-SI,A115021,2013289-1-ND
Standard Package 20
Win Source Part Number 1230730-2013289-1
Ultra Librarian 3D Model Ultra Librarian 2013289-1 CAD Model

Description

The 2013289-1 is a memory connector electronic component manufactured by TE Connectivity AMP Connectors.

  • Series: -
  • Positions: 204
  • Features: Board Guide, Latches
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Package: Tray
  • Standard Package: 20
  • Memory Type: DDR3 SDRAM
  • Mounting Type: Surface Mount, 25° Angle
