Same model may have multiple batches, images only for reference.

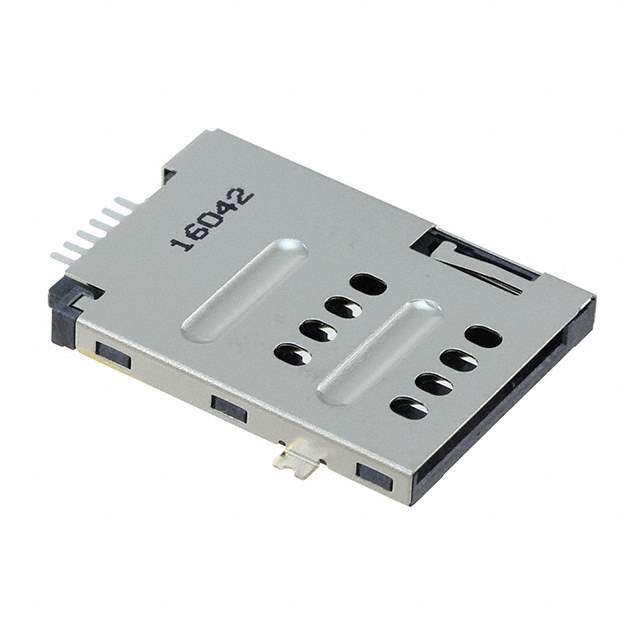

1050340001 Real Image
Same model may have multiple batches, images only for reference.

1050340001

Part No 1050340001
Manufacturer Molex, LLC
Catalog Memory Connectors - Accessories
Description Conn SIM Card M 6 POS 2.54mm Solder RA SMD 0.5A/Contact Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Connector
Contact Material Bronze
Contact Plating Gold
Country of Origin HK
Current Rating 1 A
Depth 28.3 mm
Glow Wire Compliant Non-compliant
Housing Material Stainless Steel
Length 22.3 mm
Max Operating Temperature 85 °C
Max Voltage Rating (DC) 50 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 6
Number of Contacts 6
Number of Positions 6
Number of Rows 1
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Voltage Rating (DC) 50 V
Win Source Part Number 1229546-1050340001
Categories Memory Connectors - Accessories
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1050340001 CAD Model

Description

The Molex 1229546-1050340001 is a connector.

  • Positions: 6
  • Pitch: 2.54 mm
  • Connector Type: Connector
  • Rows: 1
  • Termination: Solder
  • Contact Material: Bronze
  • Current Rating: 1 A
  • Contacts: 6
  • Length: 22.3 mm
  • Housing Material: Stainless Steel
  • Circuits: 6
  • Orientation: Right Angle
  • Contact Plating: Gold
  • Plating: Tin
