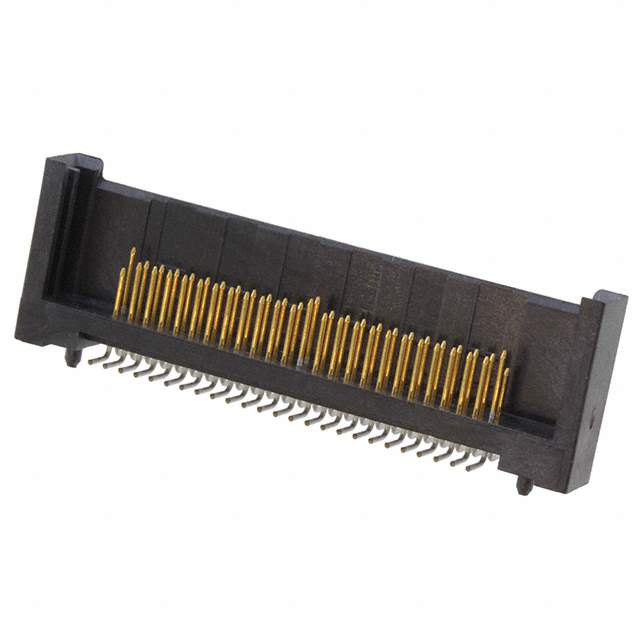

5788643-1 Real Image
Same model may have multiple batches, images only for reference.

5788643-1

Part No 5788643-1
Manufacturer TE Connectivity
Catalog Memory Connectors - Accessories
Description CONN COMPACT FLASH CARD SMD  /  50 Position Card Connector CompactFlash® - Type I, II Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors - PC Card Sockets
Mfr TE Connectivity AMP Connectors
Package Tube
Card Type CompactFlash® - Type I, II
Number of Positions 50
Connector Type Connector
Insertion, Removal Method Push In, Pull Out
Mounting SMD (SMT)
Features Board Lock
Height Above Board 0.551" (14.00mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 5788643
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 5788643-1-ND,A115531,2266-5788643-1,-5788643-1-SI
Standard Package 11
Win Source Part Number 1229492-5788643-1
Ultra Librarian 3D Model Ultra Librarian 5788643-1 CAD Model

Description

The TE Connectivity AMP Connectors 1229492-5788643-1 is a connector for memory connectors - PC card sockets.

  • Win Source: available
  • Positions: 50
  • Board Lock: yes
  • Recommended: high-speed applications
  • Maximum Voltage: 100V
