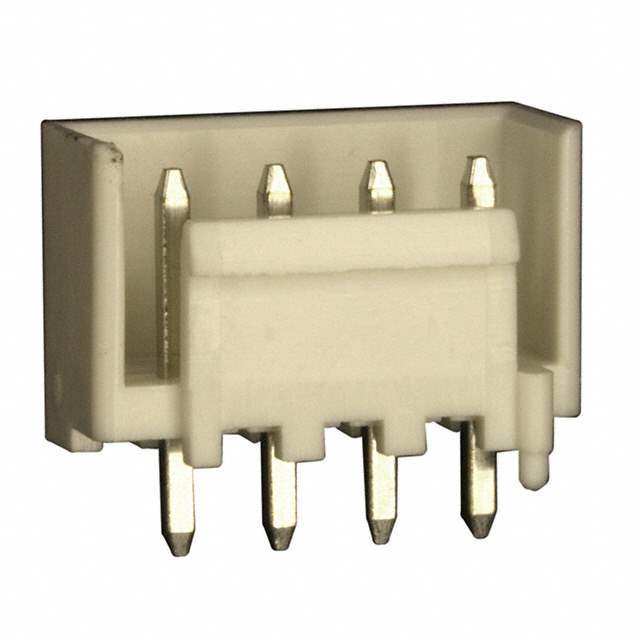

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1208351-1877285-4
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects- Rectangular Connectors -Headers, Male Pins
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian 1877285-4 CAD Model

Description

KEY FEATURES • Fully shrouded header helps to eliminate mismatings • 2 -12 position vertical headers • Mates with existing EP and EPII plug housings with receptacle contacts • RoHS compliant
