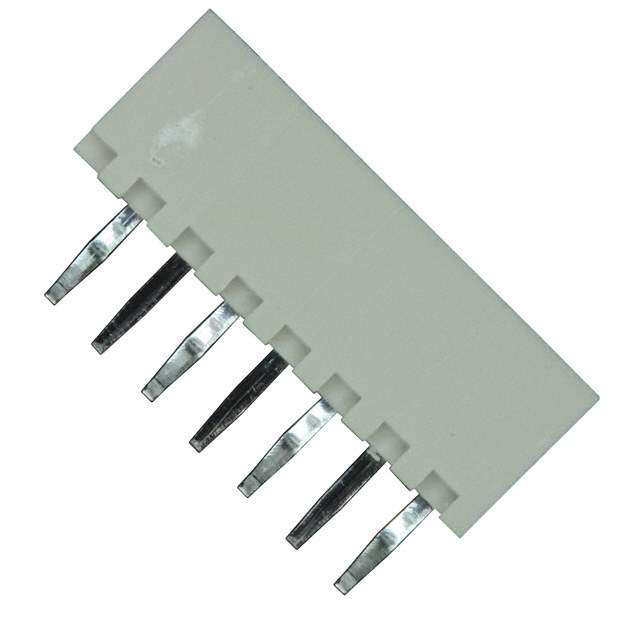

530140710

Name: 530140710
Brand: Molex, LLC
SKU: 420392
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	530140710
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER 2MM 7POS TIN
Datasheet	530140710 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Blade
Pitch - Mating	0.079" (2.00mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.122" (3.10mm)
Contact Length - Post	0.138" (3.50mm)
Overall Contact Length	0.327" (8.30mm)
Insulation Height	0.230" (5.85mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Applications	General Purpose, Telecommunications
Win Source Part Number	1006045-530140710
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 530140710 CAD Model

Alternative Products

Description

The Molex, LLC 1006045-530140710 is a header connector with a male blade contact type.

Packaging: Bulk
Positions: 7
Positions Loaded: All
Shrouded: 4 Wall
Fastening Type: Detent Lock
Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
Insulation Color: Natural
Supply and Demand: Balanced
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Tin
Contact Shape: Rectangular
Contact Length - Mating: 0.122" (3.10mm)
Contact Length - Post: 0.138" (3.50mm)
Overall Contact Length: 0.327" (8.30mm)
Insulation Height: 0.230" (5.85mm)
Voltage Rating: Not specified
Current Rating: Not specified
Material Flammability Rating: UL94 V-0
Applications: General Purpose and Telecommunications
