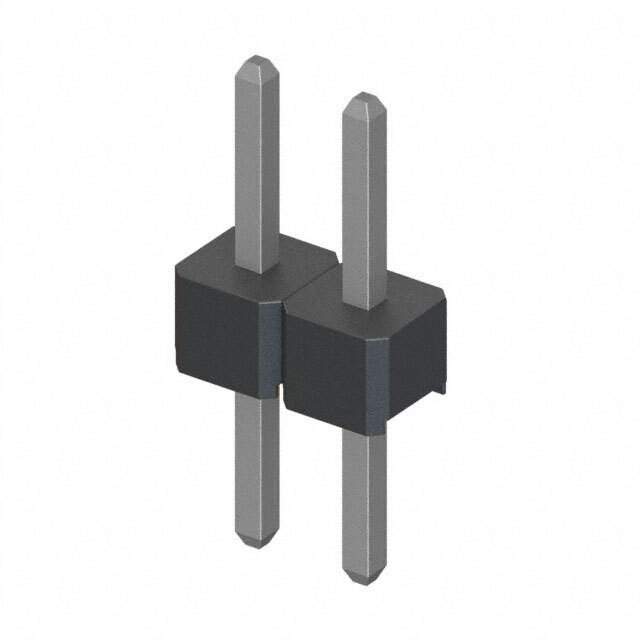

M22-2010246

Name: M22-2010246
Brand: Harwin Inc.
SKU: 784862
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	M22-2010246
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	Conn Unshrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Bulk/Loose / 2 SIL VERT HDR
Datasheet	M22-2010246 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Harwin Inc.
Series	M22
Packaging	Bulk
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.138" (3.50mm)
Contact Length - Post	0.134" (3.40mm)
Overall Contact Length	0.331" (8.40mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA6T), Nylon 6T
Operating Temperature Range	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	1A per Contact
Mated Stacking Heights	5.9mm, 8.6mm
Win Source Part Number	784862-M22-2010246
Popularity	Medium
Supply and Demand Status	Limited
Family Name	M22
ECCN	EAR99
Country of Origin	Taiwan
Halogen Free	Compliant
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian M22-2010246 CAD Model

Description

The Harwin Inc. 784862-M22-2010246 is a medium-popularity electronic component with limited supply and demand status.

Series: M22
Packaging: Bulk
Mounting Style: Through hole
Number of Positions: 2
Contact Type: Male pin
Operating Temperature Range: -55°C ~ 105°C
Current Rating: 1A per contact
UL94 Rating: V-0
Insulation Material: Polyamide (PA6T) and nylon 6T
