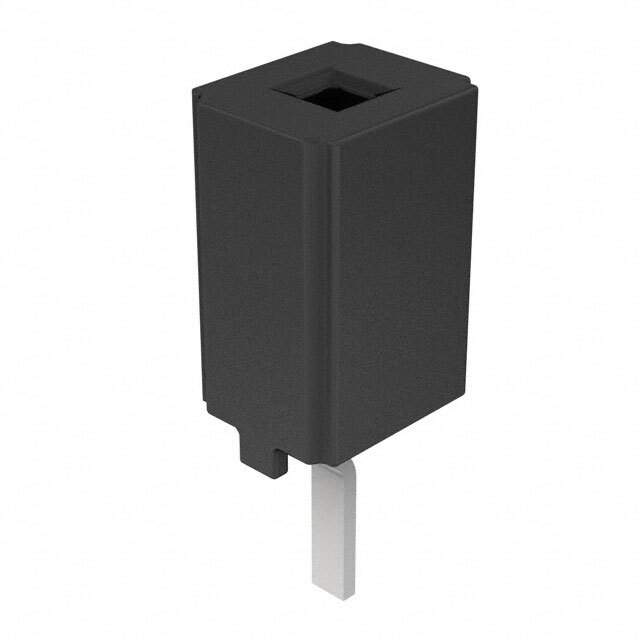

CES-101-01-F-S

Name: CES-101-01-F-S
Brand: Samtec Inc.
SKU: 415086
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CES-101-01-F-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	LOW PROFILE .025" SQUARE STRIPS
Datasheet	CES-101-01-F-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Bulk
Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3μin (0.08μm)
Insulation Color	Black
Insulation Height	0.200" (5.08mm)
Contact Length - Post	0.128" (3.25mm)
Temperature Range - Operating	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Insulation Material	Polybutylene Terephthalate (PBT)
Contact Shape	Square
Win Source Part Number	1000815-CES-101-01-F-S
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian CES-101-01-F-S CAD Model

Description

The Samtec Inc. CES-101-01-F-S is a board-to-board connector that features a receptacle connector type with a female socket contact.

Connector Type: Receptacle
Contact Gender: Female Socket
Row: Single
Positions Loaded: One
Mounting: Through-Hole
Current Rating: Unspecified values
Voltage Rating: Unspecified values
Material Flammability Rating: UL94 V-0
Supply and Demand: Balance
Popularity: Medium
