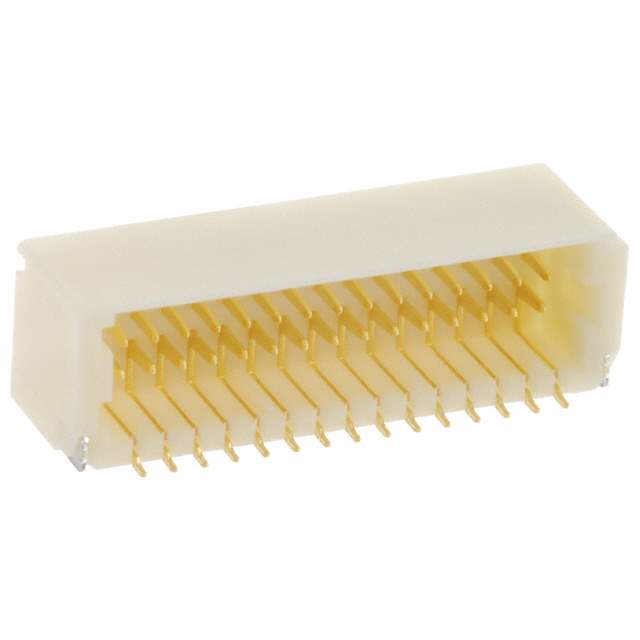

SM30B-SRDS-G-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM30B-SRDS-G-TF(LF)(SN)

Part No SM30B-SRDS-G-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SHD 30POS SIDE 1MM
Datasheet
SM30B-SRDS-G-TF(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 30
Number of Positions Loaded All
Number of Rows 2
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 5.5mm
Win Source Part Number 1096974-SM30B-SRDS-G-TF(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SM30B-SRDS-G-TF(LF)(SN) CAD Model

Description

The JST Sales America Inc. SM30B-SRDS-G-TF(LF)(SN) connector is a high-quality and reliable electronic component used in various applications.

  • Win Source Part Number: 1096974-SM30B-SRDS-G-TF(LF)(SN)
  • Type: shrouded, 4 wall header connector
  • Mounting Style: surface mount, right-angle
  • Pitch: 0.039" (1.00mm)
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Insulation Material: polyamide (PA), nylon, glass-filled
  • Application: board to cable/wire style connector
