Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Part Status Obsolete(EOL)
Connector Style Cage, Ganged (1 x 2)
Connector Type SFP
Mounting Through Hole, Right Angle
Termination Press-Fit
Features EMI Shielded
Win Source Part Number 760627-1761014-1
Popularity Medium
Supply and Demand Status Limited
Family Name 1761014
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 1761014-1 CAD Model

Description

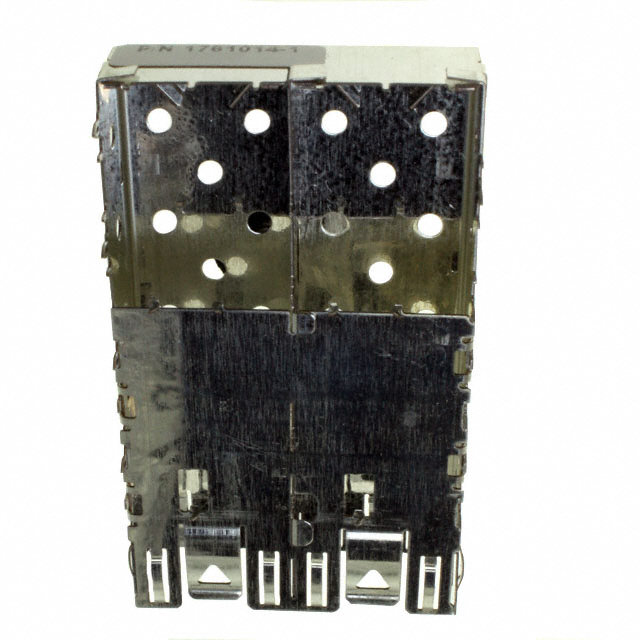

The TE Connectivity AMP Connectors 1761014-1 is a ganged cage connector with a 1 x 2 configuration.

  • Configuration: 1 x 2
  • Shielding: EMI
  • Termination: Press-fit
  • Application: SFP
  • Mounting: Through Hole
  • Orientation: Right Angle
  • Status: Obsolete (EOL)
  • Halogen Free: Yes
  • Country of Manufacture: China
  • Supply and Demand Status: Limited
