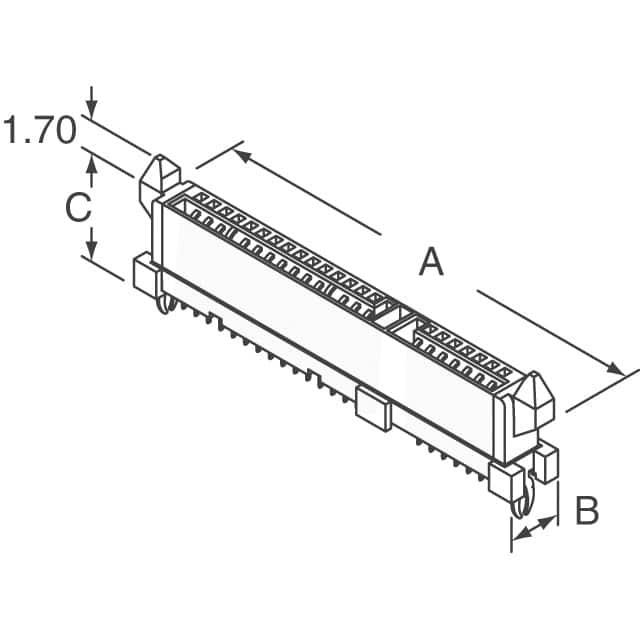

10022676-011LF
Same model may have multiple batches, images only for reference.

10022676-011LF

Part No 10022676-011LF
Manufacturer Amphenol
Catalog Pluggable Connectors
Description CONN SATA RCPT 22P PRESSFIT PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr Amphenol
Package Tray
Product Status Active
Connector Style Receptacle
Connector Type SATA
Number of Positions 22
Mounting Type Through Hole
Termination Press-Fit
Features Board Guide, Board Lock
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 10022676
Standard Package 48 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 904814-10022676-011LF
Ultra Librarian 3D Model Ultra Librarian 10022676-011LF CAD Model

Description

The 904814-10022676-011LF is a pluggable connector assembly from Amphenol.

  • Connector Type: SATA
  • Positions: 22
  • Features: Board guide and board lock
  • Termination: Press-fit
  • Contact Finish: Gold
  • Mounting Type: Through-hole
  • Package: Tray
  • MSL Level: 1 (unlimited)
  • Product Status: Active
