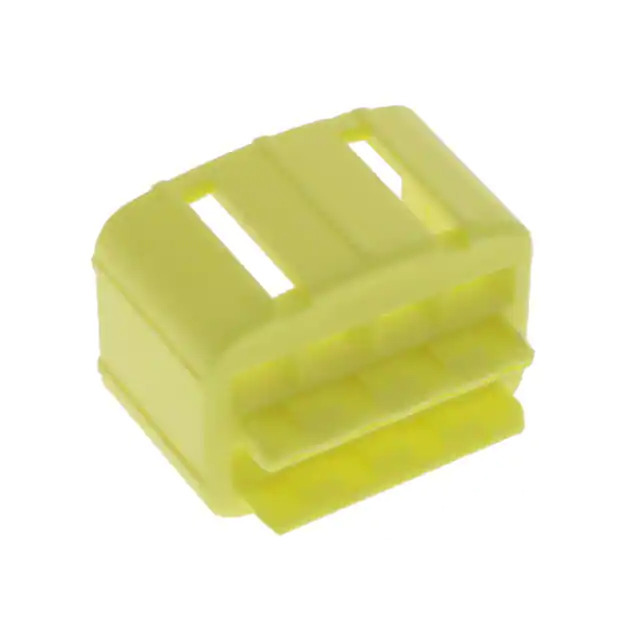

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Accessories
Mfr TE Connectivity AMP Connectors
Series EconoSeal J Mark II 070
Package Bag
Product Status Active
Accessory Type Lock Plate
Number of Positions 8
For Use With/Related Products EconoSeal Series J
Features -
Base Product Number 174985
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1363926-174985-7
Ultra Librarian 3D Model Ultra Librarian 174985-7 CAD Model

Description

The EconoSeal J Mark II 070 Lock Plate is a rectangular connector accessory designed for use with EconoSeal Series J connectors. It is manufactured by TE Connectivity AMP Connectors.

  • Product Status: Active
  • Positions: 8
  • Package: Bag
  • Base Product Number: 174985
  • HTSUS Code: 8538.90.8180
  • ECCN: EAR99
