Product Overview: BT134-600E from NXP

The BT134-600E is a high-quality Triac, designed and manufactured by NXP Semiconductors, a leader in the electronic components industry. This semiconductor device is a bidirectional AC switch, making it suitable for controlling AC electrical power across a wide range of applications. It is particularly effective in applications where high voltage and moderate current are required, such as motor control, lighting control, and heating regulation.

Key Features

• Type: Triac
• Voltage - Off State: 600V
• Current - On State (It (RMS)) (Max): 4A
• Current - Hold (Ih) (Max): 10mA
• Gate Trigger Voltage (Vgt) (Max): 1.5V
• Gate Trigger Current (Igt) (Max): 5mA
• Configuration: Single
• Operating Temperature: -40°C ~ 125°C
• Mounting Type: Through Hole
• Package / Case: TO-220-3

Application

The BT134-600E is widely used in various applications due to its robustness and versatility. It is commonly found in:

• Home appliances such as washing machines and ovens
• Lighting dimmer circuits
• Small motor controls
• Fan controllers
• Electric heater regulation

Performance and Reliability

NXP's BT134-600E is designed to offer consistent performance and high reliability. With its off-state voltage of 600V and on-state current capacity of 4A, it can handle moderate power levels. The triac's gate trigger voltage and current are also optimized for sensitive gate operation, allowing for precise control over the connected load.

Installation and Usage

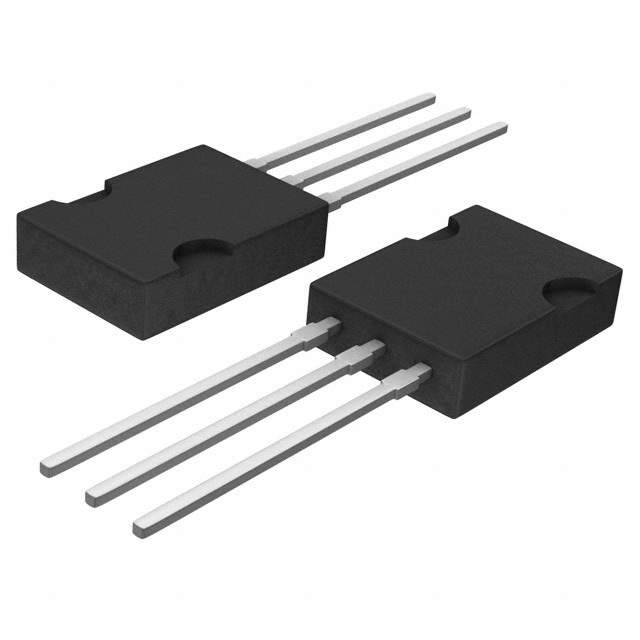

The device is available in a TO-220-3 package, which is intended for through-hole mounting. This makes it easy to install on a variety of standard circuit boards. For optimal performance, it is recommended that users ensure proper heat sinking and adhere to the manufacturer's guidelines for electrical specifications and thermal considerations.

Conclusion

The NXP BT134-600E Triac is an excellent choice for designers who require a reliable and efficient solution for AC power control. Its combination of high voltage capability, ease of installation, and versatile application range makes it a valuable component in both commercial and industrial settings.
