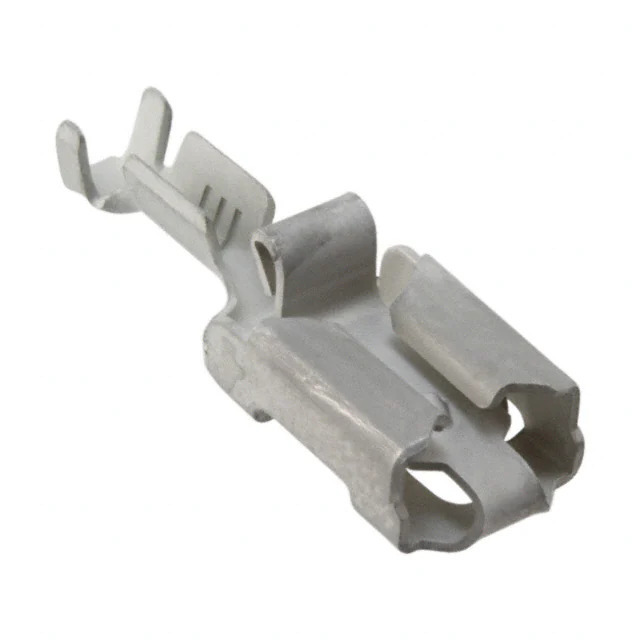

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Positive Lock
Package Tape & Reel
Product Status Active
Terminal Type Standard
Gender Female
Tab Width -
Tab Thickness 0.032" (0.81mm)
Tab Length -
Length - Overall 0.876" (22.25mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.045" ~ 0.100" (1.14mm ~ 2.54mm)
Base Product Number 160826
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364919-160826-3
Ultra Librarian 3D Model Ultra Librarian 160826-3 CAD Model

Description

The TE Connectivity AMP Connectors Positive Lock series offers a reliable solution for quick connect and quick disconnect applications.

  • Win Source Part Number: 1364919-160826-3
  • Wire Gauge: 18 to 22 AWG
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Terminal Type: Standard
  • Termination: Crimp
  • Overall Length: 0.876" (22.25mm)
  • Insulation Diameter: 0.045" to 0.100" (1.14mm ~ 2.54mm)
  • Product Status: Active
