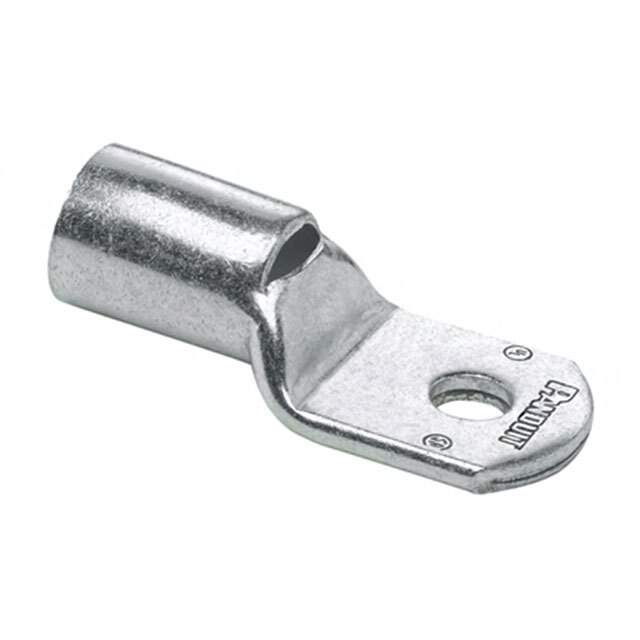

LCMAX70-6-L

Name: LCMAX70-6-L
Brand: Panduit Corp
SKU: 786929
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LCMAX70-6-L
Manufacturer	Panduit Corp
Catalog	Rectangular Connectors
Description	One Hole Metric Ftex Conductor Standard Barrel With Window Lug 70Mm Ftexwire M6 Stud / CONN TERM RECT RING 70MM #M6
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Panduit Corp
Series	LCMAX
Packaging	Bulk
Part Status	Obsolete(EOL)
Terminal Type	Ring, Tubular
Stud/Tab Size	M6 Stud
Terminal Style	Single Stud Hole
Tab Thickness	0.120" (3.05mm)
Length - Overall	2.382" (60.50mm)
Width - Outer Edges	0.965" (24.51mm)
Mounting	Free Hanging (In-Line)
Termination	Crimp, Barrel
Wire Gauge	70mm2
Insulation	Non-Insulated
Contact Finish	Tin
Contact Material	Copper
Diameter - Barrel ID	0.531" (13.49mm)
Diameter - Barrel OD	0.650" (16.51mm)
Diameter - Ring ID	0.260" (6.60mm)
Win Source Part Number	786929-LCMAX70-6-L
Popularity	Medium
Supply and Demand Status	Balance
Introduction Date	January 01, 2000
ECCN	EAR99
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian LCMAX70-6-L CAD Model

Description

The LCMAX70-6-L is a connector manufactured by Panduit Corp. The connector is a ring and tubular terminal type with a single stud hole terminal style.

Terminal Type: Ring and Tubular
Terminal Style: Single stud hole
Width: 0.965" (24.51mm)
Length: 2.382" (60.50mm)
Stud/Tab Size: M6 Stud
Tab Thickness: 0.120" (3.05mm)
Insulation: Non-insulated
Contact Material: Copper with Tin Finish
Mounting: Free Hanging (In-Line)
Status: Obsolete (EOL)
Introduction Date: January 01, 2000
ECCN: EAR99
Popularity: Medium
Supply and Demand Status: Balanced
