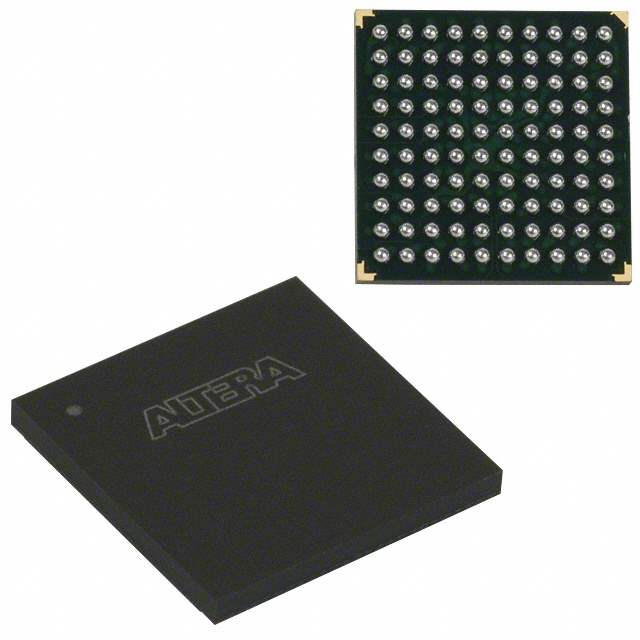

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Altera
Packaging Tray
Status Active
Programmable Type In System Programmable
Delay Time tpd(1) Max 5.4ns
Voltage Supply - Internal 2.5V, 3.3V
Number of Logic Elements/Blocks 570
Number of Macrocells 440
Number of I/O 76
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 100-FBGA (11x11)
Win Source Part Number 203900-EPM570F100A5N
Popularity Medium
Supply and Demand Status Limited
Quantity per package 176
Ultra Librarian 3D Model Ultra Librarian EPM570F100A5N CAD Model

Description

The EPM570F100A5N is a versatile CPLD designed to offer high functionality to developers working with digital designs. It integrates multiple features conducive to efficient circuit operation while minimizing energy consumption.

Applications and Projects

  • Signal processing systems
  • Wireless communication devices
  • Embedded control applications
  • Consumer electronics enhancements

Features and Benefits

  • 100-pin FineLine BGA promoting compact designs
  • Wide operating voltage range for diverse application support
  • High logic capacity for complex designs
  • Approximately 570 logic elements for superior functionality

Combining flexibility and performance, the EPM570F100A5N serves as a robust solution for designers aiming to implement reliable and compact electronic systems.
