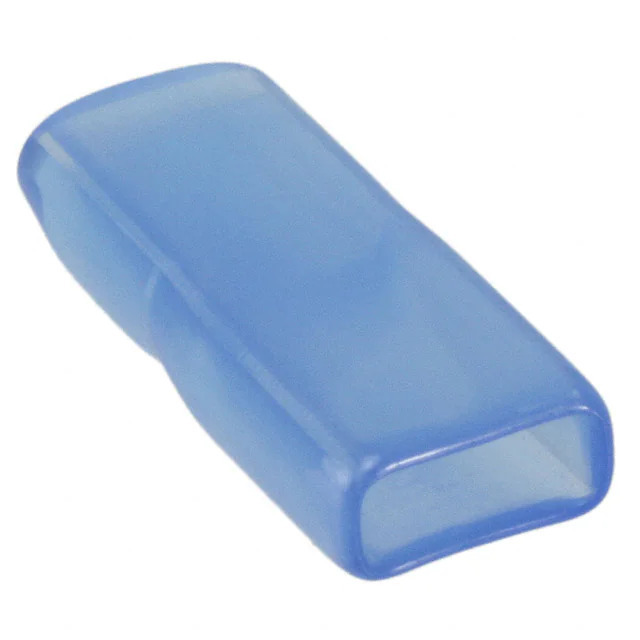

174817-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Housings, Boots
Mfr TE Connectivity AMP Connectors
Series Positive Lock EX
Package Bulk
Product Status Obsolete
Style Sleeve
Terminal Type Quick Connect, Disconnect
Gender Female, Receptacle
Terminal Size 0.250" (6.35mm)
Number of Positions 1
Stacking Direction -
For Use With/Related Products 0.250" (6.35mm) Quick Connects
Mounting Type Free Hanging (In-Line)
Color Blue
Material PVC
Note Contacts Not Included
Base Product Number 174817
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1363848-174817-1
Ultra Librarian 3D Model Ultra Librarian 174817-1 CAD Model

Description

The TE Connectivity AMP Connectors Positive Lock EX series sleeve is a high-quality housing for electrical connectors from TE Connectivity AMP Connectors.

  • Mounting Type: Free Hanging (In-Line)
  • Color: Blue
  • Number of Positions: 1
  • Compatible With: 0.250" (6.35mm) Quick Connects
  • Contacts Included: No
  • Terminal Type: Female Receptacle
  • Material: PVC
