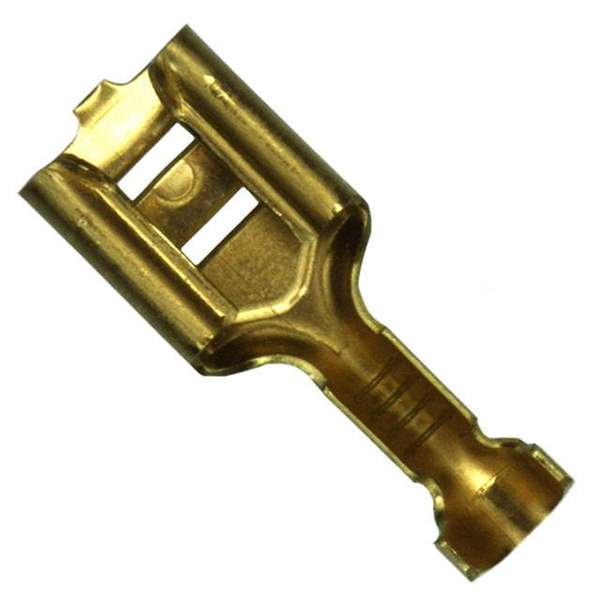

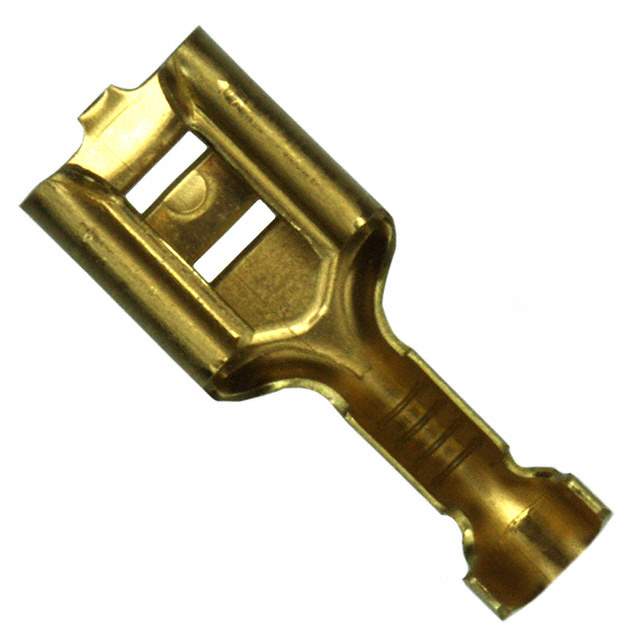

42743-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Length - Overall 0.755" (19.18mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Insulation Diameter 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
Base Product Number 42743
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 42743-1-ND,A27621TR,A27621,A27621-ND,-42743-1-SI,A27621CT,427431
Standard Package 12,000
Win Source Part Number 1162803-42743-1
Ultra Librarian 3D Model Ultra Librarian 42743-1 CAD Model

Description

The Faston series female connector is a quick disconnect connector that is designed for use in terminals.

  • Series: Faston
  • Type: Female Connector
  • Application: Terminals
  • Termination: Crimp
  • Wire Gauge: 18-22 AWG
  • Package: Tape and Reel
  • Standard Package: 12,000
  • Insulation: Non-Insulated
  • Tab Width: 0.250 inches
  • Tab Thickness: 0.032 inches
  • Tab Length: 0.305 inches
  • Insulation Diameter: 0.090 inches to 0.130 inches
  • Mounting: Free Hanging (In-Line)
  • ECCN: EAR99
  • Manufacturer: TE Connectivity AMP Connectors
