Products specifications

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Part Status Obsolete (End Of Life)
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 3
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Mounting Style Through Hole, Right Angle
Flange Feature Housing/Shell (4-40)
Termination Solder
Features Board Lock
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Temperature Range - Operating -55°C ~ 130°C
Voltage Rating 125V
Color Blue
Dielectric Material Polyamide (PA9T), Nylon 9T
Contact Material Phosphor Bronze
Backset Spacing 0.350" (8.89mm)
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 808802-1734344-1
Ultra Librarian 3D Model Ultra Librarian 1734344-1 CAD Model

Description

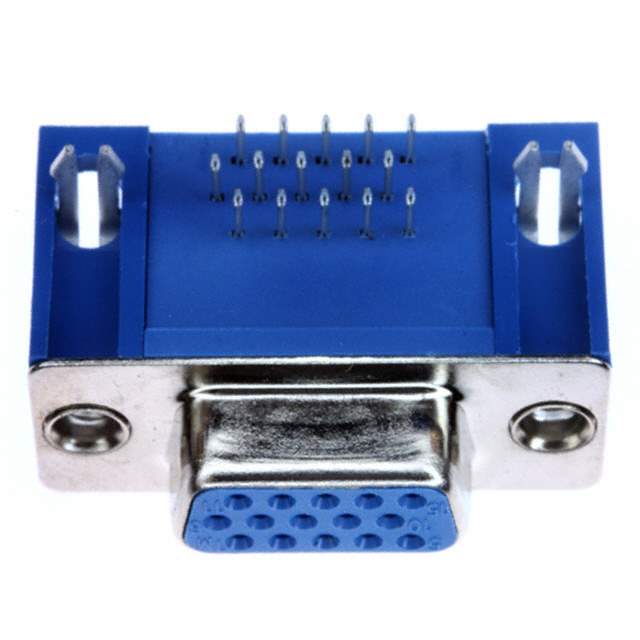

The TE Connectivity AMP Connectors 808802-1734344-1 is a 15-position female socket receptacle from TE Connectivity AMP Connectors.

  • Mounting: Through-hole, Right Angle
  • Color: Blue
  • Contact Finish: Gold Flash
  • Contact Material: Phosphor Bronze
  • Connector Style: D-sub, High Density
  • Voltage Rating: 125V
  • Temperature Range: -55°C to 130°C
  • Shell Material: Steel, Nickel Plated
  • Dielectric Material: Polyamide (PA9T), Nylon 9T
  • Status: Obsolete (end of life)
  • Manufacturer Pack Quantity: 100
  • MSL Level: 1 (unlimited)
  • Current Rating: 2A
  • Board Lock: Yes
