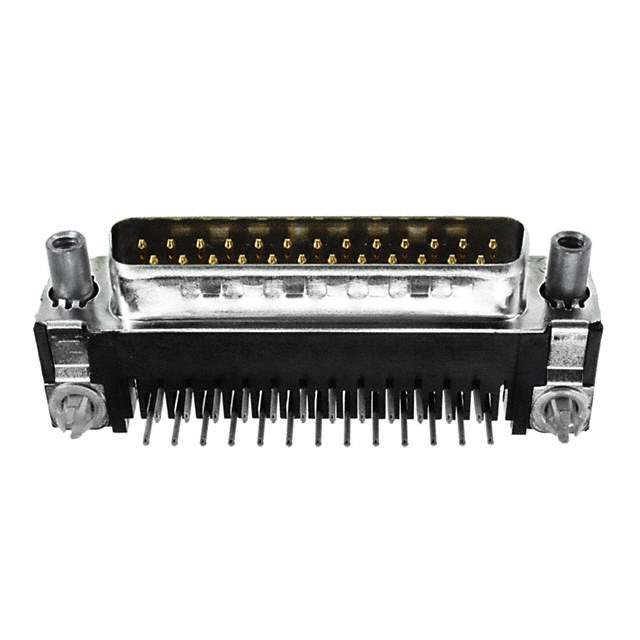

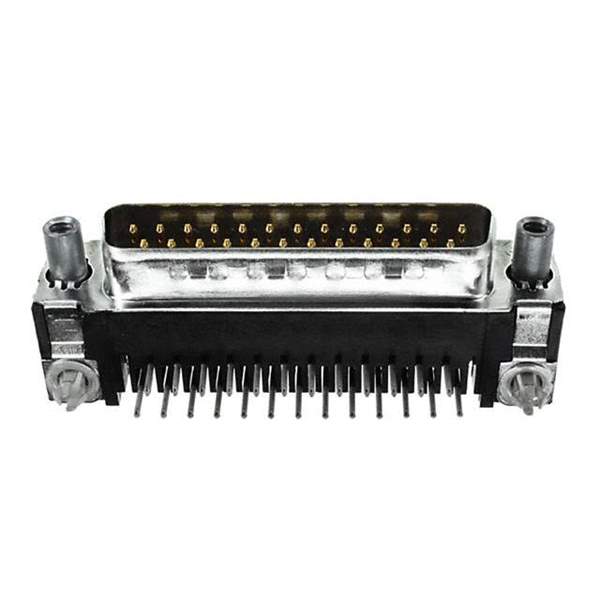

5747842-6 Real Image
Same model may have multiple batches, images only for reference.

5747842-6

Part No 5747842-6
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 25POS R/A SLDR / 25 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Ground Strap, Grounding Indents
Voltage Rating 125V
Color Black
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747842
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A32102,2266-5747842-6,57478426,-5747842-6-SI
Standard Package 65
Win Source Part Number 987869-5747842-6
Ultra Librarian 3D Model Ultra Librarian 5747842-6 CAD Model

Description

The 987869-5747842-6 is a D-Sub connector that is designed to provide a secure and reliable connection for electronic circuits.

  • Positions: 25
  • Color: Black
  • Features: Board Lock, Ground Strap, Grounding Indents
  • Contact Type: Signal
  • Gender: Plug Male Pins
  • Contact Finish: Gold
  • Mounting Type: Through-Hole, Right-Angle
  • Current Rating: 6A
  • Voltage Rating: 125V
  • Shell Material: Steel, Tin-Plated
  • Packaging: Tray
  • Operating Temperature Range: -55°C to 105°C
