164531-4 TE Connectivity

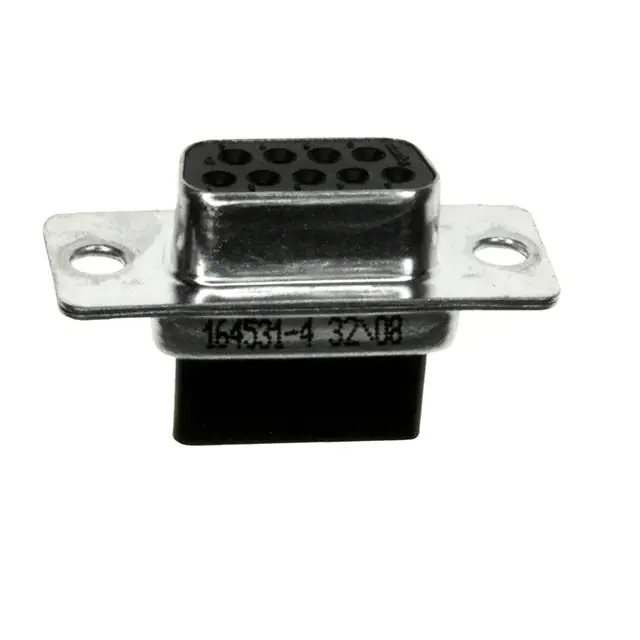

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Product Status Active
Connector Style D-Sub
Connector Type Receptacle for Female Contacts
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Type Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded)
Features -
Shell Material, Finish Steel, Tin Plated
Shell Finish Thickness -
Ingress Protection -
Mating Cycles -
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Color Black
Note Contacts Not Included
Base Product Number 164531
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1365165-164531-4
Ultra Librarian 3D Model Ultra Librarian 164531-4 CAD Model

Description

The AMPLIMITE HDP-20 D-Sub Connector Housing is a versatile component for various electronic applications from TE Connectivity AMP Connectors.

  • Connector Type: Receptacle
  • Gender: Female
  • Number of Positions: 9
  • Number of Rows: 2
  • Housing Material: Black Polybutylene Terephthalate (PBT), Glass Filled
  • Flange Feature: Housing/Shell (Unthreaded)
  • Shell Size: 1 (DE, E)
  • Contact Type: Signal
  • Voltage Rating: 125V
  • Base Product Number: 164531
  • Product Status: Active
