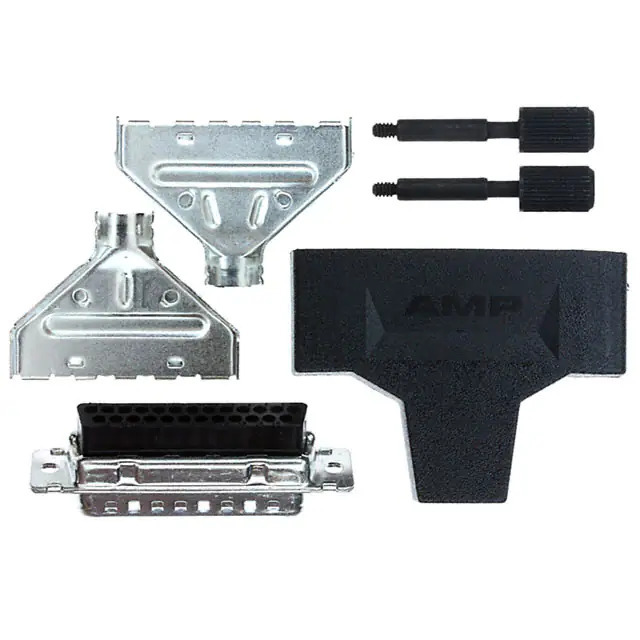

Same model may have multiple batches, images only for reference.

1658659-1

Name: 1658659-1
Brand: TE Connectivity
SKU: 1363763
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1658659-1
Manufacturer	TE Connectivity
Catalog	D - SUB, D - SHAPED connectors
Description	CONN D-SUB HOUSING PLUG 25POS / Plug for Male Contacts Housing D-Sub Connector 25 Position
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Housings
Mfr	TE Connectivity AMP Connectors
Series	AMPLIMITE HDP-20
Package	Bulk
Product Status	Active
Connector Style	D-Sub
Connector Type	Plug for Male Contacts
Number of Positions	25
Number of Rows	2
Shell Size, Connector Layout	3 (DB, B)
Contact Type	Signal
Mounting Type	Free Hanging (In-Line)
Flange Feature	Cable Side (4-40)
Features	Backshell, Grounding Indents, Shielded
Shell Material, Finish	Steel, Tin Plated
Shell Finish Thickness	200µin (5.08µm)
Ingress Protection	-
Mating Cycles	-
Dielectric Material	Polyamide (PA), Nylon, Glass Filled
Color	Black
Note	Contacts Not Included
Base Product Number	1658659
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8538.90.8180
Win Source Part Number	1363763-1658659-1
Ultra Librarian 3D Model	Ultra Librarian 1658659-1 CAD Model

Description

The 1363763-1658659-1 is a D-sub connector housing from the AMPLIMITE HDP-20 series by TE Connectivity AMP Connectors.

Contact Gender: Plug Male
Number of Positions: 25
Number of Rows: 2
Features: Backshell, Grounding Indents, Shielded
Material: Polyamide (PA), Nylon, Glass Filled
Color: Black
Finish: Steel, Tin Plated
Mounting Type: Free Hanging (In-Line)
Feature: Flange
Product Status: Active
Series: AMPLIMITE HDP-20
