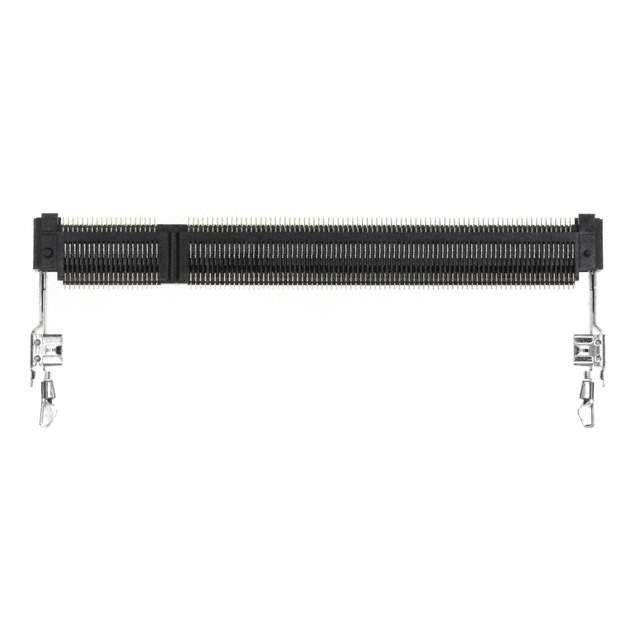

1565917-4 Real Image
Same model may have multiple batches, images only for reference.

1565917-4

Part No 1565917-4
Manufacturer TE Connectivity
Catalog Memory Connectors - Accessories
Description CONN SKT SODIMM 200POS R/A SMD  /  200 Position SODIMM DDR2 SDRAM Socket Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors - Inline Module Sockets
Mfr TE Connectivity AMP Connectors
Package Tape & Reel (TR),Cut Tape (CT)
Connector Style SODIMM
Number of Positions 200
Memory Type DDR2 SDRAM
Mounting Type Surface Mount, Right Angle
Features Board Guide, Latches
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Base Product Number 1565917
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A97498TR,A97498CT,15659174
Standard Package 150
Win Source Part Number 1034834-1565917-4
Ultra Librarian 3D Model Ultra Librarian 1565917-4 CAD Model

Description

The TE Connectivity AMP Connectors 1565917-4 is a DDR2 SDRAM memory connector designed for use in surface mount applications.

  • Positions: 200
  • Features: Board guide and latches for secure mounting
  • Contact Finish: Gold
  • Packaging: Tape and reel or cut tape
  • Style: SODIMM
  • Standard Package: 150 units
  • Alternative Parts: 78308-2230, 1473005-4, 1612618-4, 1473150-4, 1717379-4, and 1565918-4
