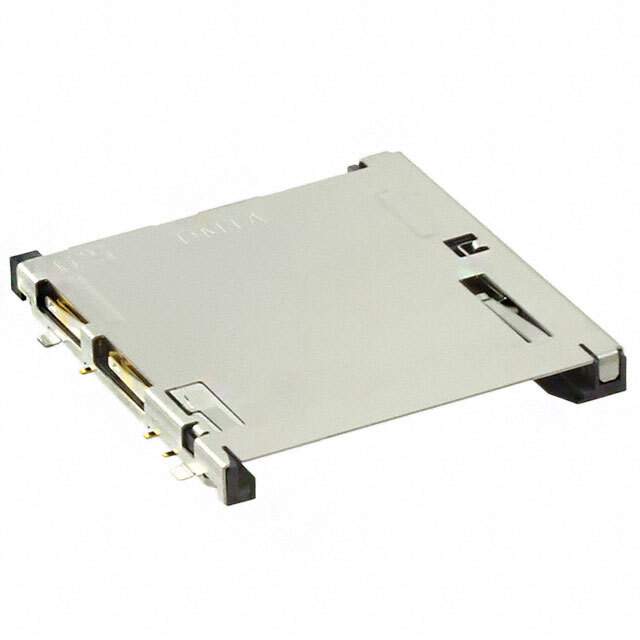

DM1AA-SF-PEJ(82) Real Image
Same model may have multiple batches, images only for reference.

DM1AA-SF-PEJ(82)

Part No DM1AA-SF-PEJ(82)
Manufacturer Hirose Electric Co Ltd
Catalog Memory Connectors - Accessories
Description CONN SD CARD PUSH-PUSH R/A SMD / 12 (9 + 3) Position Card Connector Secure Digital - SD Surface Mount, Right Angle Gold
Datasheet
DM1AA-SF-PEJ(82) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors - PC Card Sockets
Mfr Hirose Electric Co Ltd
Series DM1
Package Tape & Reel
Card Type Secure Digital - SD
Number of Positions 12 (9 + 3)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Type Surface Mount, Right Angle
Features Board Guide, Switch
Height Above Board 0.114" (2.90mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Base Product Number DM1AA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.8585
Other Names DM1AA-SF-PEJ(82)-ND,H122401-DKR,609-0004-8-82,H122401-TR,H122401-CT,Q13482069
Standard Package 450
Win Source Part Number 982619-DM1AA-SF-PEJ(82)
Ultra Librarian 3D Model Ultra Librarian DM1AA-SF-PEJ(82) CAD Model

Description

The DM1AA-SF-PEJ(82) is a PC card socket connector manufactured by Hirose Electric Co Ltd. DM1AA-SF-PEJ(82) manufactured by Hirose Electric Co Ltd.

  • RoHS Status: Request Verification
  • Supply and Demand Status: Balance
  • Number of Positions: 12
  • Pitch: 1.27mm
