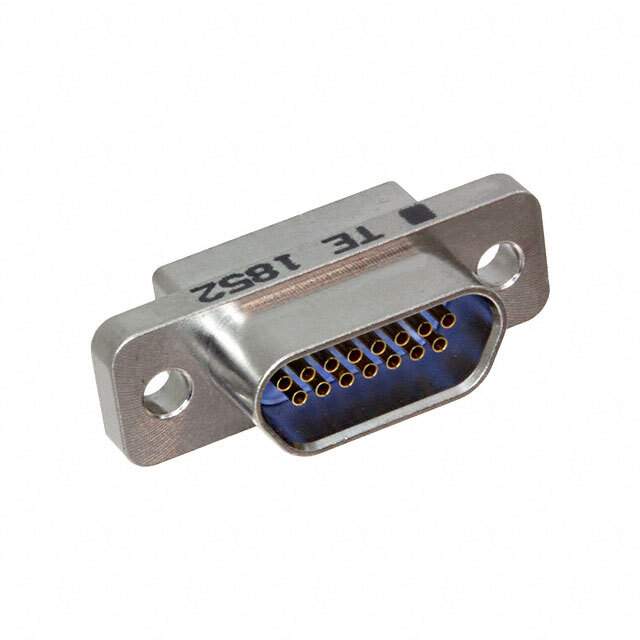

Same model may have multiple batches, images only for reference.

1532188-1

Name: 1532188-1
Brand: TE Connectivity
SKU: 1216064
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1532188-1
Manufacturer	TE Connectivity
Catalog	D - Sub Connectors
Description	CONN MICRO-D RCPT 15POS SLDR CUP / 15 Position D-Type, Micro-D Receptacle, Female Sockets Connector
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>D-Sub Connectors
Mfr	TE Connectivity Aerospace, Defense and Marine
Series	Military, MIL-DTL-83513, MICRODOT (MCKS)
Package	Bulk
Connector Style	D-Type, Micro-D
Connector Type	Receptacle, Female Sockets
Number of Positions	15
Number of Rows	2
Mounting Type	Free Hanging (In-Line)
Contact Type	Signal
Flange Feature	Housing/Shell (Unthreaded)
Termination	Solder Cup
Shell Material, Finish	Metal, Nickel Plated, Electroless
Contact Finish	Gold
Contact Finish Thickness	50.0µin (1.27µm)
Features	Reverse Layout
Base Product Number	1532188
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.8000
Other Names	094-6226-000,094-6226-000-ND,A144698,M83513/02-BN, MCKS-N1-B-15SS,-1532188-1-SI,-MCKS-N1-B-15SS-SI-ND,1532188-1-MIL,M83513/02-BN-MIL,-MCKS-N1-B-15SS-SI,1532188-1-ND,M83513/02-BN,094-6226-000-MIL
Standard Package	1
Win Source Part Number	1216064-1532188-1
Ultra Librarian 3D Model	Ultra Librarian 1532188-1 CAD Model

Description

The 1216064-1532188-1 is a receptacle, female sockets connector from TE Connectivity Aerospace, Defense and Marine.

Connector Type: D-Type, Micro-D
Number of Contacts: 15
Contact Type: Signal
Number of Rows: 2
Layout: Reverse
Shell Material: Metal with Nickel Plating
Termination: Solder Cup
Contact Finish: Gold
Contact Finish Thickness: 50.0μin (1.27μm)
Mounting Type: Free Hanging (In-Line)
Flange Feature: Housing/Shell (Unthreaded)
Series: Military, MIL-DTL-83513, MICRODOT (MCKS)
Package: Bulk
ECCN: EAR99
Alternative Parts: 1532188-1, MCKS-N1-B-15SS
