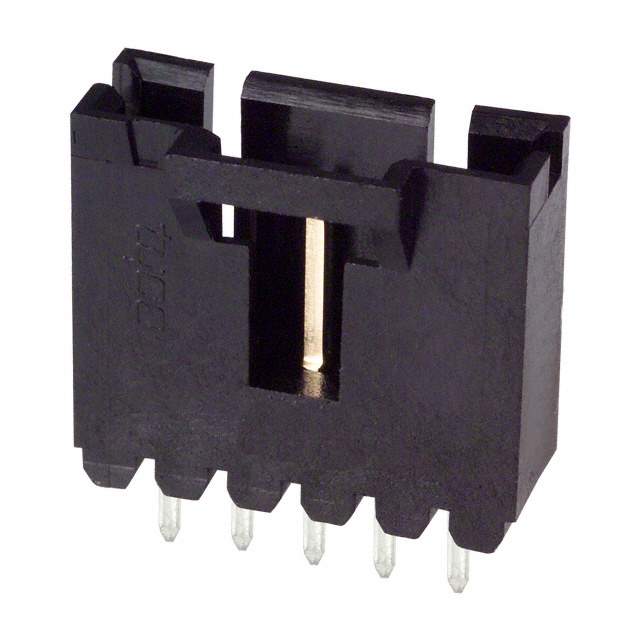

103638-4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.535" (13.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0μin (0.38μm)
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Thermoplastic
Features Keying Slot
Insulation Color Black
Contact Finish Thickness - Post 100.0μin (2.54μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Manufacturer Pack Quantity 36
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813583-103638-4
Ultra Librarian 3D Model Ultra Librarian 103638-4 CAD Model

Description

The TE Connectivity AMP Connectors 813583-103638-4 is a through-hole header connector with 5 positions and a keying slot.

  • Contact Material: Brass
  • Voltage Rating: - volts
  • Applications: Automotive, general purpose, medical, and telecommunications
  • Pitch: 0.100" (2.54mm)
  • Connection: Board-to-board or cable
  • Contact Finish (Mating): Gold (15.0μin (0.38μm))
  • Contact Finish (Post): Tin-lead (100.0μin (2.54μm))
  • Insulation Material: Thermoplastic
  • Flammability Rating: -
  • Shrouded: 4 walls
  • Contact Length: 0.130" (3.30mm)
  • Insulation Height: 0.535" (13.60mm)
  • Contact Shape: Square
  • Supply and Demand Status: Limited
  • Popularity: Low
