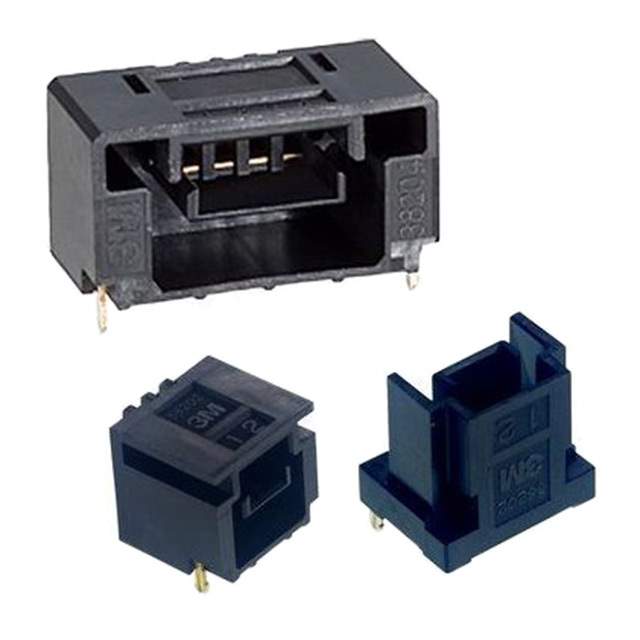

38204-62S3-000PL

Name: 38204-62S3-000PL
Brand: 3M
SKU: 1348649
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	38204-62S3-000PL
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN RCPT 4POS 0.1 GOLD PCB / 4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	3M
Series	382
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Cable/Wire
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Insulation Color	Black
Insulation Height	0.512" (13.00mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-20°C ~ 70°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Board Lock
Current Rating (Amps)	5A
Voltage Rating	160V
Applications	Automotive, General Purpose, Industrial, Lighting
Insulation Material	Polybutylene Terephthalate (PBT)
Contact Shape	Square
Contact Material	Copper Alloy
Contact Finish Thickness - Post	Flash
Base Product Number	38204
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1348649-38204-62S3-000PL
Ultra Librarian 3D Model	Ultra Librarian 38204-62S3-000PL CAD Model

Description

The 38204-62S3-000PL is a 4-position female socket rectangular connector used in automotive, general-purpose, industrial, and lighting applications.

Pitch - Mating: 0.100” (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Mounting Type: Through Hole
Features: Shrouded-4 Wall
Fastening Type: Latch Holder
Current Rating: 5A
Voltage Rating: 160V
Contact Material: Copper Alloy
Insulation Material: Polybutylene Terephthalate (PBT)
Ingress Protection: No
Category: Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
ECCN: EAR99
