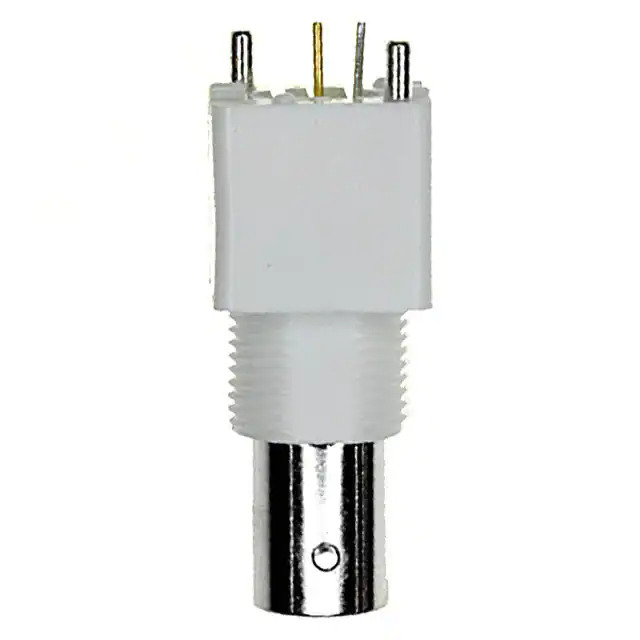

Same model may have multiple batches, images only for reference.

1-1337541-0

Name: 1-1337541-0
Brand: TE Connectivity
SKU: 1365257
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1-1337541-0
Manufacturer	TE Connectivity
Catalog	Coaxial Connectors (RF) - Assemblies
Description	CONN BNC JACK STR 50 OHM PCB / BNC Connector Jack, Female Socket 50Ohm Panel Mount, Through Hole Solder
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr	TE Connectivity AMP Connectors
Series	ZDC, Greenpar
Package	Bulk
Product Status	Obsolete
Connector Style	BNC
Connector Type	Jack, Female Socket
Contact Termination	Solder
Shield Termination	Solder
Impedance	50Ohm
Mounting Type	Panel Mount, Through Hole
Mounting Feature	Bulkhead - Front Side Nut
Cable Group	-
Fastening Type	Bayonet Lock
Frequency - Max	4 GHz
Number of Ports	1
Features	Board Guide, Isolated
Housing Color	Silver, White
Ingress Protection	-
Center Contact Material	Brass
Includes	-
Body Material	Zinc Alloy
Body Finish	Nickel
Center Contact Plating	Gold
Dielectric Material	Polyethylene (PE)
Temperature Range - Operating	-55°C ~ 85°C
Voltage Rating	500 V
Mating Cycles	500
Insertion Loss	-
Base Product Number	1337541
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4010
Win Source Part Number	1365257-1-1337541-0
Ultra Librarian 3D Model	Ultra Librarian 1-1337541-0 CAD Model

Description

The ZDC, Greenpar series from TE Connectivity AMP Connectors is a jack connector with a bayonet lock fastening type.

Voltage Rating: 500 V
Impedance: 50 Ohms
Mounting Type: Panel Mount and Through Hole
Housing Color: Silver and White
Material: Zinc Alloy
Body Finish: Nickel
Product Status: Obsolete
MSL Level: 1 (Unlimited)
Package: Bulk
REACH: Unaffected
