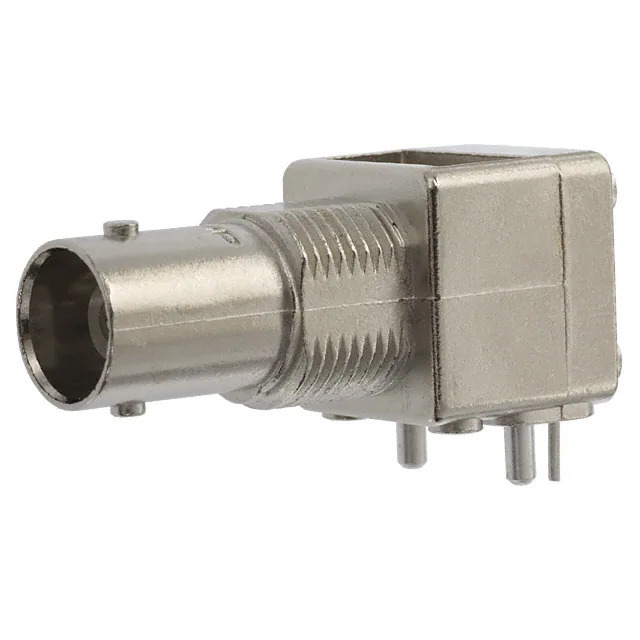

5227661-1 TE Connectivity
Same model may have multiple batches, images only for reference.

5227661-1

Part No 5227661-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC JACK R/A 50 OHM PCB / BNC Connector Jack, Female Socket 50Ohm Panel Mount, Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr TE Connectivity AMP Connectors
Series -
Package Bulk
Product Status Active
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Cable Group -
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Features -
Housing Color Silver
Ingress Protection -
Center Contact Material Phosphor Bronze
Includes -
Body Material Zinc
Body Finish Nickel
Center Contact Plating Tin
Dielectric Material Polymethylpentene (PMP)
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss -
Base Product Number 5227661
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1365224-5227661-1
Ultra Librarian 3D Model Ultra Librarian 5227661-1 CAD Model

Description

The coaxial connector assembly from TE Connectivity AMP Connectors is a high-quality component for RF applications.

  • Manufacturer: TE Connectivity AMP Connectors
  • Mounting: Panel mount, through-hole, right-angle
  • Temperature Range: -55°C to 85°C
  • Fastening Type: Bayonet lock
  • Voltage Rating: 500V
  • Frequency Range: Up to 4 GHz
  • Body Material: Zinc
  • Center Contacts Material: Phosphor bronze
