Same model may have multiple batches, images only for reference.

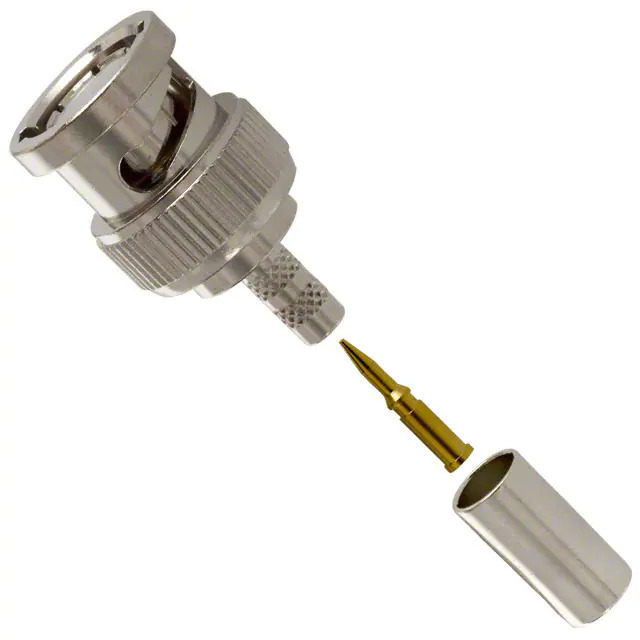

31-320-RFX

Name: 31-320-RFX
Brand: Amphenol-RF Division
SKU: 1365230
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	31-320-RFX
Manufacturer	Amphenol-RF Division
Catalog	Coaxial Connectors (RF) - Assemblies
Description	CONN BNC PLUG STR 50 OHM CRIMP / BNC Connector Plug, Male Pin 50Ohm Free Hanging (In-Line) Crimp or Solder
Datasheet	31-320-RFX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr	Amphenol RF
Series	-
Package	Bulk
Product Status	Active
Connector Style	BNC
Connector Type	Plug, Male Pin
Contact Termination	Crimp or Solder
Shield Termination	Crimp
Impedance	50Ohm
Mounting Type	Free Hanging (In-Line)
Mounting Feature	-
Cable Group	RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Fastening Type	Bayonet Lock
Frequency - Max	4 GHz
Number of Ports	1
Features	-
Housing Color	Silver
Ingress Protection	-
Center Contact Material	Brass
Includes	3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Body Material	Brass
Body Finish	Nickel
Center Contact Plating	Gold
Dielectric Material	Polyoxymethylene (POM) Acetal
Temperature Range - Operating	-40°C ~ 85°C
Voltage Rating	500 V
Mating Cycles	500
Insertion Loss	0.2dB
Base Product Number	31-320
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4010
California Prop 65	Warning Information
Win Source Part Number	1365230-31-320-RFX
Ultra Librarian 3D Model	Ultra Librarian 31-320-RFX CAD Model

Description

The Amphenol RF 31-320-RFX is a coaxial connector assembly designed for RF applications.

Connector Type: Plug with male pin contacts
Fastening Type: Bayonet lock
Voltage Rating: 500V
Frequency: Up to 4 GHz
Compatible Cable Groups: RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907
Housing Color: Silver
Pieces Included: One connector, one contact, and one ferrule
