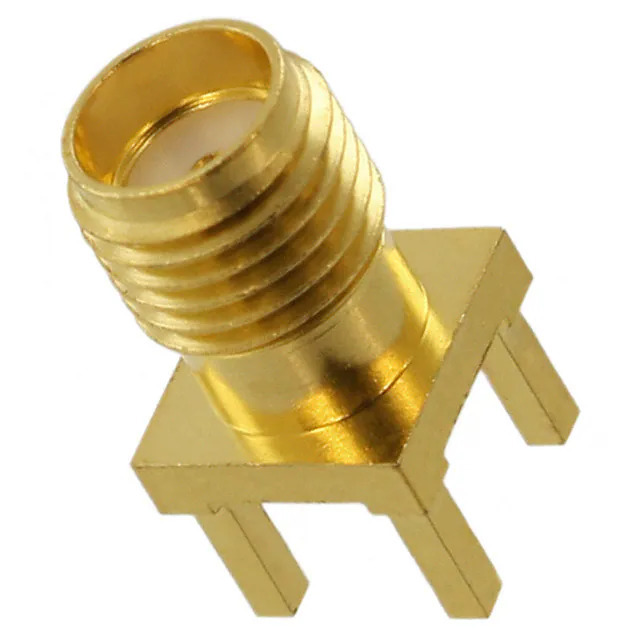

132134-15 Amphenol-RF Division
Same model may have multiple batches, images only for reference.

132134-15

Part No 132134-15
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA JACK STR 50 OHM SMD / SMA Connector Jack, Female Socket 50Ohm Surface Mount, Through Hole Solder
Datasheet
132134-15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol RF
Series -
Package Bulk
Product Status Active
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Surface Mount, Through Hole
Mounting Feature -
Cable Group -
Fastening Type Threaded
Frequency - Max 12.4 GHz
Number of Ports 1
Features -
Housing Color Gold
Ingress Protection -
Center Contact Material Beryllium Copper
Includes -
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Insertion Loss -
Base Product Number 132134
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1365258-132134-15
Ultra Librarian 3D Model Ultra Librarian 132134-15 CAD Model

Description

The Amphenol RF coaxial connector assembly with part number 1365258-132134-15 is a high-quality connector suitable for various applications manufactured by Amphenol RF.

  • Temperature Range: -65°C to 165°C
  • MSL Level: 1 (unlimited)
  • Packaging: Bulk
  • Product Status: Active
  • Category: Connectors, Interconnects - Coaxial Connectors
  • Contact Termination: Solder
  • Connector Type: Jack, Female Socket
  • Fastening Type: Threaded
  • Housing Color: Gold
  • Impedance: 50Ohm
  • Maximum Frequency: 12.4 GHz
  • Mounting Type: Surface Mount and Through-Hole
  • Center Contact Material: Beryllium Copper
