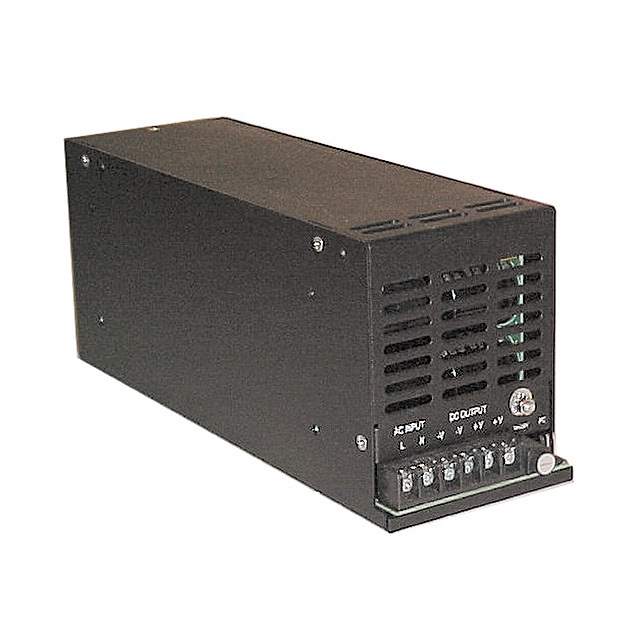

VA-26519 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Approvals CE
Current - Output 1 8.3 A
Efficiency 95 %
Height 127 mm
Isolation Voltage 3 kV
Length 76.2 mm
Maximum Operating Temperature 50 °C
Max Output Current 50 A
Max Output Power 3 kW
Max Power Dissipation 3 kW
Min Operating Temperature -10 °C
Mount Chassis Mount
Number of Outputs 1
Output Voltage 360 V
Radiation Hardening No
RoHS Compliant
Voltage - Output 1 360 V
Width 127 mm
Win Source Part Number 1103951-VA-26519
Categories Off-Board Modules
Manufacturer TDK-Lambda Americas Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian VA-26519 CAD Model

Description

The TDK-Lambda Americas Inc. off-board module is a high-quality component used in various electrical appliances.

  • Isolation Voltage: 3kV
  • Maximum Output Power: 3kW
  • Voltage-Output: 360V
  • Current-Output: 8.3A
  • Operating Temperature Range: -10°C to 50°C
  • Approvals: CE approved
  • Mounting: Chassis mount
