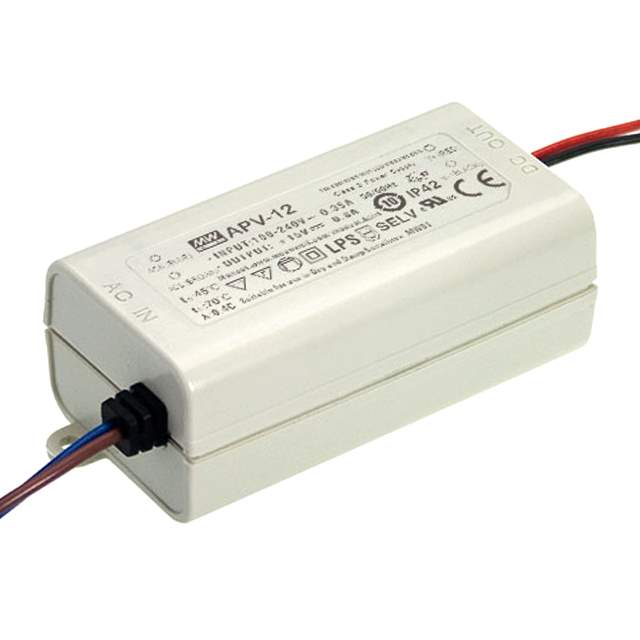

APV-12-12 Real Image
Same model may have multiple batches, images only for reference.

APV-12-12

Part No APV-12-12
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRIVER CV AC/DC 12V 1A / 1A 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
APV-12-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>LED Drivers
Mfr MEAN WELL USA Inc.
Series APV-12 (12W)
Package Box
Type Constant Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Voltage - Input (Max) 264VAC
Voltage - Output 12V
Current - Output (Max) 1A
Power (Watts) 12 W
Voltage - Isolation 3.75 kV
Features OCP, OVP, SCP
Ratings IP42
Temperature Range - Operating -30°C ~ 70°C
Efficiency 82%
Termination Style Wire Leads
Dimension 3.03" L x 1.57" W x 1.14" H (77.0mm x 40.0mm x 29.0mm)
Approval Agency CB, CCC, CE, cURus, ENEC
Mounting Type Chassis Mount
Base Product Number APV-12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Names APV-12-12-ND,1866-1138
Standard Package 120
Win Source Part Number 1086391-APV-12-12
Ultra Librarian 3D Model Ultra Librarian APV-12-12 CAD Model

Description

The APV-12-12 LED driver is an external power supply designed to provide a constant voltage of 12V with a maximum output current of 1A.

  • Output Voltage: 12V
  • Maximum Output Current: 1A
  • Protection Features: OCP, OVP, and SCP
  • Efficiency: 82%
  • Voltage Isolation: 3.75kV
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -30°C to 70°C
  • Dimension: 3.03" L x 1.57" W x 1.14" H (77.0mm x 40.0mm x 29.0mm)
  • IP Rating: IP42
  • Manufacturer: MEAN WELL USA Inc.
